Configuration Overview

Use this section when you already know what Bloodraven does and need to choose the right configuration surface.

Pick the right page

Need	Start here
Smallest working manifest	Getting Started
Production installation path	Production Install
Every CRD field and default	CRD Reference
Per-role users and MySQL TLS	Credentials and TLS
Node labels, zones, and taints	Placement Contract
Application connection behavior	App Integration
Security boundaries and network surfaces	Security Model
Go-live requirements	Production Hardening

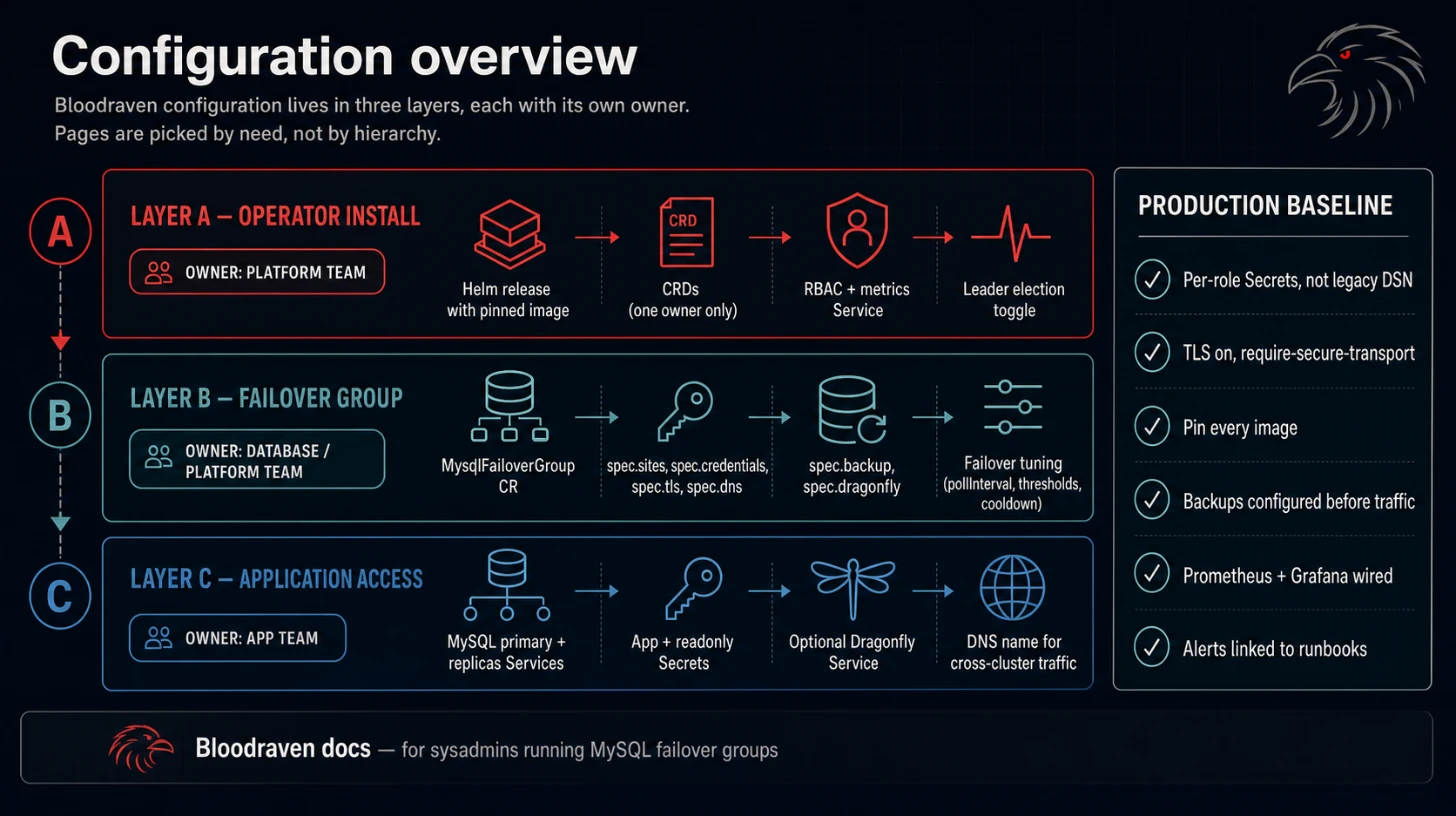

Configuration model

Bloodraven has three layers:

Layer	Resource	Owner
Operator install	Helm release, CRDs, RBAC, metrics Service	Platform team
Failover group	MysqlFailoverGroup	Database/platform team
Application access	MySQL Services, optional Dragonfly Service, Secrets, DNS name	Application team with platform guardrails

MySQL configuration precedence

Bloodraven renders a separate deterministic MySQL ConfigMap for every site. The effective option order is:

1. Bloodraven built-in defaults.
2. Normalized spec.mysqlConf group overrides.
3. Normalized spec.sites[].mysqlConf overrides for that site.
4. Bloodraven-owned replication safety settings, reasserted last.

Option names normalize _ to - before every merge. For example, max_connections and max-connections address the same effective key; do not define both spellings in one map and expect two settings. A site spelling overrides the equivalent normalized group key. Final keys are sorted, so semantically equivalent maps render and hash identically.

The operator always owns gtid-mode, enforce-gtid-consistency, log-bin, log-replica-updates, skip-replica-start, and clone plugin loading. User values cannot weaken these replication invariants.

Each Deployment mounts mysql-<group>-<site>-config. A rendered-config hash, not the raw maps, drives drift: changing or deleting a site override rolls that site while leaving unaffected sites alone. Ordered updates restart every drifted non-active follower sequentially after checking read-only state, direct source, and replication threads. If the active site also drifted, a healthy promotable standby takes over before the old active is restarted. A reader-only or other non-active-only change never causes failover, and neither readers nor dr-only sites are chosen as handoff targets.

Upgrades from the legacy group ConfigMap are level-driven. Bloodraven creates all per-site maps first, rolls live Deployment references one site at a time, and deletes the legacy map only after every Deployment references its expected site map. Reconciliation can resume safely after an operator restart at any point in this migration.

Service inheritance and isolation

spec.serviceTemplate defaults the client-facing site Services and the -primary and -replicas Services. A site's spec.sites[].serviceTemplate overrides only that site's client Service:

• Non-zero site type, externalTrafficPolicy, and nodePort values override inherited values.
• Group and site annotations merge, with site keys winning. Site annotations never leak to siblings, -primary, -replicas, or internal Services.
• externalTrafficPolicy is legal only when the effective Service type is NodePort or LoadBalancer. The group value also applies to primary and replicas Services when their type supports it.
• nodePort is site-only, legal only for NodePort or LoadBalancer, and applies only to the named MySQL port. Kubernetes admission enforces the cluster's configured allocation range.

Omitting a site NodePort preserves its compatible allocated MySQL NodePort while the Service remains external. Switching between NodePort and LoadBalancer preserves that compatible allocation; switching to ClusterIP clears external-only fields. Bloodraven preserves Kubernetes-assigned Service identity and annotations it does not own.

For every site, Bloodraven also creates mysql-<group>-<site>-internal. It is always ClusterIP, ignores all user Service templates, publishes not-ready addresses, and exposes MySQL plus the sidecar for operator, replication, clone, backup, and peer traffic. The client-facing Service exposes MySQL only. When Go clients dial the internal Service with spec.tls, Bloodraven retains the client-facing site hostname as the TLS ServerName, so existing certificates do not need another DNS name. Operators that enable strict hostname verification inside MySQL-native clone or replication must account for the internal Service hostname separately.

Recommended production baseline

• Use spec.credentials instead of legacy spec.secretName.
• Use distinct Secrets for operator, app, read-only, monitor, and backup users.
• Set spec.tls and require client TLS in application connection strings.
• Pin operator, sidecar, MySQL, and backup images.
• If you enable spec.dragonfly, pin spec.dragonfly.image to Dragonfly v1.38.0+ and route applications to the Bloodraven-created active Dragonfly Service.
• Configure backups before production traffic starts.
• Enable Prometheus scraping, Grafana dashboards, and alerts.
• Link alerts to Runbooks.

Resource defaults

Bloodraven now sets a default resources.requests on every container it creates, so the operator's workloads can be scheduled on clusters that enforce a ResourceQuota or a LimitRange requiring requests. Where the user already has a CR override field, that field continues to win; only previously-unset containers picked up a default.

Workload	Container	Resource source
MySQL Deployment (per site)	mysql	spec.sites[].resources (user-supplied)
MySQL Deployment (per site)	sidecar	spec.sidecarResources (user-supplied)
Dragonfly StatefulSet	dragonfly	spec.dragonfly.resources (user-supplied)
Backup Job	mysqlsh / mysqlsh-dump / backup-encrypt-upload	spec.backup.resources
Cleanup Job	mysqlsh	spec.backup.resources
Verification Job	mysqlsh	spec.verification.resources
Verification Job init	decrypt-download	spec.backup.resources when set, else 100m CPU / 128Mi memory (requests only)
Restore Job (bootstrap + in-place)	mysqlsh	spec.backup.resources when set, else 100m CPU / 128Mi memory (requests only)
Restore Job init	pitr-download, decrypt-download	spec.backup.resources when set, else 100m CPU / 128Mi memory (requests only)
Operator (Helm)	operator	.Values.resources in charts/bloodraven/values.yaml

The 100m/128Mi init-container default matches the operator's own request in the Helm chart. It is intentionally conservative: the AES-GCM decrypt stream and the PITR archive walker tolerate small requests when the container can burst on the host. Override by setting spec.backup.resources on the failover group; the same value flows to the init containers.

The cleanup Job reuses spec.backup.resources because it runs the same cleanup.py payload sized by the same backup profile parameters. If a future workload needs a separate budget, we add a dedicated field then.

Security context defaults

Two new opt-in fields let cluster operators apply Kubernetes Restricted PSS to the MySQL Deployments and Dragonfly StatefulSets without forcing a uid/gid migration on existing clusters:

• spec.podSecurityContext and spec.containerSecurityContext — applied to the MySQL Deployment pod and to its mysql and sidecar containers.
• spec.dragonfly.podSecurityContext and spec.dragonfly.containerSecurityContext — applied to the Dragonfly StatefulSet.

When these fields are nil (the default), Bloodraven leaves the workload's PodSpec untouched; existing CRs render identical pods to before. When they are set, the operator applies the value verbatim — it does not merge with internal hardened defaults. The user owns the uid, gid, fsGroup, seccomp profile, and capability set, because the right values depend on which MySQL and Dragonfly images you run.

See Production Hardening → Opt-in Restricted PSS for MySQL and Dragonfly for worked examples and the upgrade procedure for existing clusters whose /var/lib/mysql PVCs were created without an fsGroup.
