CRD Reference

Complete reference for Bloodraven custom resources (shipstream.io/v1alpha1).

CRDs at a glance

Kind	Short name	Scope	Description
MysqlFailoverGroup	mfg	Namespaced	Core resource. Declares a multi-site MySQL HA cluster with automatic failover.
MysqlBackup	mb	Namespaced	One backup run. Created ad-hoc or by a schedule CronJob. Tracks phase, location, GTID, and binlog coordinates.
MysqlBackupVerification	mbv	Namespaced	Periodic restore-of-latest-backup into a throwaway mysqld to prove a backup loads cleanly. See Backup verification.
MysqlStandbyCluster	msc	Namespaced	Phase 1 of WISHLIST #7. Passive DR relationship descriptor: lives on the DR cluster, continuously monitors the source archive bucket, and stamps readiness conditions. See Multi-cluster DR.

---

MysqlFailoverGroup

Complete reference for the MysqlFailoverGroup custom resource (shipstream.io/v1alpha1).

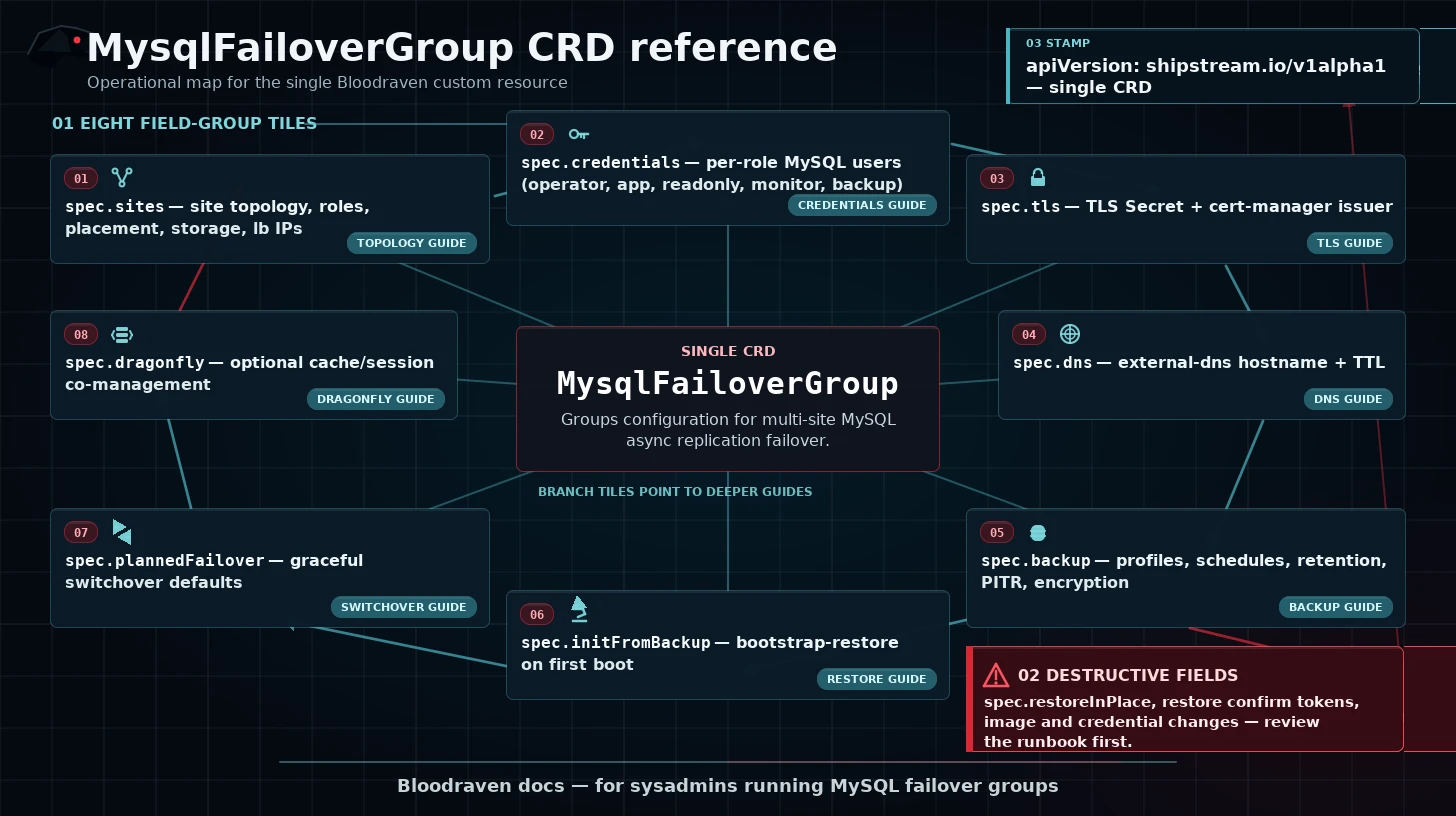

Common fields quick reference

Field	Use most often for	Guide
spec.sites	Site topology, placement, storage, LB IPs	Placement Contract
spec.credentials	Per-role MySQL users	Credentials And TLS
spec.tls	MySQL TLS Secret and issuer	Credentials And TLS
spec.dns	external-dns hostname and TTL	Production Install
spec.backup	Backup profiles, schedules, PITR	Backup Overview
spec.initFromBackup	Bootstrap restore into a new group	Backup And Restore
spec.plannedFailover	Defaults for planned failover API	Planned Failover
spec.dragonfly	Optional Dragonfly cache/session co-management	App Integration

:::danger Destructive and high-risk fields Review runbooks before changing spec.restoreInPlace, restore-related confirm tokens, reclone controls, and any field that changes spec.sites, spec.credentials, spec.tls, or MySQL images. Restore and reclone operations can replace data; image and credential changes can trigger restarts or failed reconnects. :::

Spec

Top-level fields

Field	Type	Required	Default	Description
image	string	No	mysql:9.6	MySQL container image
sidecarImage	string	No	ghcr.io/shipstream/bloodraven-sidecar:0.1.6	Bloodraven sidecar container image
sites	[]SiteSpec	Yes	--	Site definitions. At least two sites with role: primary-candidate; additional dr-only sites may be appended. MinItems=2, MaxItems=16.
secretName	string	No	--	(Legacy) Name of the Secret containing MySQL credentials (key: dsn). Mutually exclusive with credentials.
credentials	CredentialsSpec	No	--	Per-role MySQL credential management. The operator creates MySQL users with role-appropriate privileges and rotates passwords when secrets change. Mutually exclusive with secretName.
dns	DNSSpec	Yes	--	DNS configuration for traffic steering via external-dns
tls	TLSSpec	No	--	TLS configuration (cert-manager integration)
pollInterval	duration	No	2s	How often the operator polls each MySQL instance
failureThreshold	int	No	3	Consecutive failed polls before a site is marked unreachable
recoveryThreshold	int	No	2	Consecutive successful polls before a site is marked writable
failoverCooldown	duration	No	5m	Minimum time between automatic failovers
splitBrainPolicy	SplitBrainPolicySpec	No	--	Opt-in automated resolution when multiple sites are writable and the operator has no prior failover history. See SplitBrainPolicySpec.
sidecar	SidecarSpec	No	--	Sidecar-container knobs (lease timeout, peer check interval, Bloodraven aux endpoint).
sidecarResources	ResourceRequirements	No	--	Compute resources (requests/limits) for the sidecar container
terminationGracePeriodSeconds	int	No	60	Grace period for MySQL container shutdown.
mysqlConf	map[string]string	No	--	MySQL configuration overrides merged into the generated my.cnf. Changes trigger an ordered rolling restart when updateStrategy: OrderedUpdate is set.
replication	ReplicationSpec	No	--	Replication health settings
updateStrategy	string	No	OrderedUpdate	Update strategy (OrderedUpdate or Recreate).
cloneTimeout	int	No	3600	Timeout in seconds for initial data clone operations
podLabels	map[string]string	No	--	Additional labels applied to every MySQL pod. Operator labels take precedence on conflict.
podAnnotations	map[string]string	No	--	Additional annotations applied to every MySQL pod. Operator annotations take precedence on conflict.
serviceTemplate	ServiceTemplate	No	--	Customizes the Services created by the operator
extraContainers	[]Container	No	--	Additional containers injected into every MySQL pod (e.g. exporters)
extraInitContainers	[]Container	No	--	Additional init containers injected after the operator's built-in init container
backup	BackupSpec	No	--	Backup configuration (profiles, schedules, retry, PITR, encryption, security contexts). See BackupSpec.
initFromBackup	InitFromBackupSpec	No	--	One-shot restore-on-first-boot before normal bootstrap completes. See InitFromBackupSpec.
restoreInPlace	RestoreInPlaceSpec	No	--	Re-triggerable destructive restore against the active primary. Bumping confirm to a newer RFC 3339 timestamp re-arms. See RestoreInPlaceSpec.
plannedFailover	PlannedFailoverSpec	No	--	Cluster-wide defaults for the graceful planned-failover API (triggered via bloodraven.shipstream.io/planned-failover=<site>).
dragonfly	DragonflySpec	No	--	Optional per-site Dragonfly cache/session co-management. When enabled, the operator creates one Dragonfly StatefulSet per site, an active Redis-compatible Service, replication wiring, promotion status, and optional snapshot-restore upgrade support. See DragonflySpec.

SiteSpec

Each entry in spec.sites defines one site in the failover group.

Field	Type	Required	Default	Description
name	string	Yes	--	Unique site identifier (e.g. iad, pdx). Used in Service names and labels. MaxLength=253.
role	string	No	primary-candidate	Promotion eligibility: primary-candidate (can be auto-promoted on failover) or dr-only (passive replica; never auto-promoted). At least two primary-candidate sites are required.
zone	string	Yes	--	Availability zone or region for pod scheduling
taintNodeSelector	map[string]string	Yes	--	Label selector used to find nodes that receive this group's db-readonly taint for this site. Use group-scoped labels such as shipstream.io/failover-group.orders=true and shipstream.io/site.orders=iad for shared nodes.
lbIP	string	Yes	--	Load balancer IP address. Used for DNS A-record steering on failover.
storage	StorageSpec	Yes	--	Persistent storage configuration for this site
resources	ResourceRequirements	No	--	Compute resources (requests/limits) for the MySQL container at this site

StorageSpec

Field	Type	Required	Description
storageClassName	string	Yes	Kubernetes StorageClass name
size	string	Yes	Storage request size (e.g. 100Gi)

DNSSpec

Field	Type	Required	Description
hostname	string	Yes	The DNS hostname managed by Bloodraven (e.g. orders.az.example.com). On failover, the operator creates/updates a DNSEndpoint CR with an A record pointing this hostname to the active site's lbIP. Apps should CNAME their DNS to this hostname.
ttl	int	No	TTL in seconds for the DNS A record (default: 60)

TLSSpec

Field	Type	Required	Description
issuerRef	IssuerRef	Yes	cert-manager issuer reference
secretName	string	Yes	Name of the TLS Secret to create

IssuerRef

Field	Type	Required	Description
name	string	Yes	Issuer or ClusterIssuer name
kind	string	Yes	Issuer or ClusterIssuer

ReplicationSpec

Field	Type	Required	Description
maxLagSeconds	int	No	Maximum acceptable replication lag in seconds before the replica is considered unhealthy

SplitBrainPolicySpec

Opt-in configuration for how the operator should behave when more than one site is simultaneously writable and the operator cannot infer a winner from prior failover history. See Split-brain resolution for a full description of semantics and tradeoffs.

Field	Type	Required	Description
sitePriorities	[]string	No	Ordered list of primary-candidate site names. The operator walks the list and promotes the first entry that is currently writable; every other writable site is fenced. Empty or unset falls back to manual resolution (alert only). MaxItems=16. Entries must reference sites with role primary-candidate.

ServiceTemplate

Field	Type	Required	Description
type	string	No	Kubernetes Service type: ClusterIP (default), LoadBalancer, or NodePort
annotations	map[string]string	No	Additional annotations applied to every Service managed by the operator

CredentialsSpec

Exactly one of secretName or credentials must be set. When credentials is used, the operator manages MySQL users on the primary — creating them during first boot via an init script and updating passwords via ALTER USER when the referenced Secrets change.

Field	Type	Required	Description
operatorSecret	string	Yes	Secret for operator and sidecar connections. Required keys: username, password, MYSQL_ROOT_PASSWORD. Optional: MYSQL_REPLICATION_USER, MYSQL_REPLICATION_PASSWORD (default to operator credentials). Grants: ALL PRIVILEGES WITH GRANT OPTION.
appSecret	string	No	Secret for application read-write connections. Keys: username, password. Grants: ALL PRIVILEGES (no GRANT OPTION, no SUPER).
readOnlySecret	string	No	Secret for application read-only connections. Keys: username, password. Grants: SELECT, SHOW VIEW, SHOW DATABASES, PROCESS.
monitorSecret	string	No	Secret for Prometheus exporter connections. Keys: username, password. Grants: PROCESS, REPLICATION CLIENT, SELECT on performance_schema.
backupSecret	string	No	Secret for backup/restore connections. Keys: username, password. Grants: SELECT, LOCK TABLES, SHOW VIEW, EVENT, TRIGGER, RELOAD, BACKUP_ADMIN, REPLICATION CLIENT.

BackupSpec

Top-level backup configuration, embedded as spec.backup. Omitting the field disables backups for this failover group.

Field	Type	Required	Default	Description
image	string	No	container-registry.oracle.com/mysql/community-server:9.6	Image containing mysqlsh used for dump / load.
imagePullSecrets	[]LocalObjectReference	No	--	Pull secrets for the backup image.
profiles	[]BackupProfile	No	--	Reusable named backup configurations referenced by schedules and MysqlBackup CRs.
schedules	[]BackupSchedule	No	--	Cron-driven recurring backups; each references a profile by name. Each entry becomes a Kubernetes CronJob owned by this failover group.
maxLagSecondsForSource	int	No	300	Threshold above which the backup reconciler falls back from replica-first source selection to the primary.
resources	ResourceRequirements	No	--	Resources for the backup Job's mysqlsh container.
activeDeadlineSeconds	int	No	7200	Wall-clock cap on a single backup Job.
backoffLimit	int	No	2	Job-level backoffLimit applied to backup Jobs.
retry	BackupRetrySpec	No	--	Operator-level retries for Failed scheduled MysqlBackup CRs. Independent of Job backoffLimit.
pitr	PITRSpec	No	--	Continuous binlog archival for point-in-time recovery.
podSecurityContext	PodSecurityContext	No	--	Overrides default hardened pod security context merged onto the defaults.
containerSecurityContext	SecurityContext	No	--	Overrides default hardened container security context.
stagingVolumeSizeLimit	Quantity	No	--	Cap on the plaintext-staging emptyDir used by backup / restore / verify Jobs. Unset falls through to the node's ephemeral-storage limit; set on shared clusters to keep a large dump from triggering DiskPressure (AUDIT H6).

BackupProfile (spec.backup.profiles[])

Field	Type	Required	Default	Description
name	string	Yes	--	Profile identifier, [a-z0-9]([-a-z0-9]*[a-z0-9])?.
storage	BackupStorage	Yes	--	Tagged union: type: S3 + s3 block, or type: PVC + pvc block.
dump	DumpOptions	No	--	util.dumpInstance() tuning (threads, chunk size, compression, schema filters, consistent locking, OCIMDS checks).
retention	int	No	7	Legacy shorthand: max number of successful MysqlBackup CRs to keep. Ignored when retentionPolicy is set.
retentionPolicy	RetentionPolicy	No	--	Structured retention: count, maxAgeDays, minKeep floor, maxFailedKeep cap. Replaces the retention shorthand.
verification	VerificationSpec	No	--	Opt-in periodic restore-of-this-profile's-latest-backup into a throwaway MySQL instance; renders a CronJob when enabled: true.
encryption	BackupEncryptionSpec	No	--	Enables client-side envelope encryption (AES-256-GCM + HKDF-SHA256) for every dump file and, when this profile is also used for PITR, every archived binlog. Passphrase is owned by the operator — rotating or deleting the Secret renders existing ciphertexts unrecoverable. See Backup encryption.

BackupEncryptionSpec

Field	Type	Required	Default	Description
algorithm	string	No	AES-256-GCM	Encryption algorithm. Only AES-256-GCM is currently supported.
passphraseSecret	PassphraseSecretRef	Yes	--	Reference to a Secret in the same namespace holding the passphrase. See PassphraseSecretRef.

PassphraseSecretRef

Reused by BackupEncryptionSpec, BackupDecryptionSpec, spec.initFromBackup.decryption, and spec.restoreInPlace.decryption.

Field	Type	Required	Default	Description
name	string	Yes	--	Name of the Secret.
key	string	No	passphrase	Key within the Secret that holds the passphrase bytes. Leading and trailing whitespace is stripped when the passphrase is read.

BackupDecryptionSpec

Used on spec.initFromBackup.decryption and spec.restoreInPlace.decryption to supply the passphrase that decrypts an encrypted backup. When the source is a same-group mysqlBackupRef and the field is omitted, the operator falls back to the profile's own passphraseSecret.

Field	Type	Required	Description
passphraseSecret	PassphraseSecretRef	Yes	Secret holding the passphrase used at backup time. Rotating to a new value does not re-wrap existing ciphertext — it will simply fail to decrypt.

RetentionPolicy

Fields are independently optional; a successful MysqlBackup is kept iff any enabled check says keep. minKeep is the safety floor that prevents a retention sweep from wiping the last good backup after a long outage of failing attempts.

Field	Type	Required	Default	Description
count	int	No	0	Max number of successful CRs to keep. 0 disables count-based pruning.
maxAgeDays	int	No	0	Max age in days of a successful CR before it becomes eligible for pruning. 0 disables age-based pruning.
minKeep	int	No	1	This many newest successful CRs are always kept, regardless of the other knobs.
maxFailedKeep	int	No	10	Cap on the Failed bucket, independent of the success retention policy.

PITRSpec (spec.backup.pitr)

Enables continuous binary-log archival so restores can target an arbitrary stopDatetime on top of any retained full dump. See Backup and restore → Point-in-time recovery for the end-to-end story.

Field	Type	Required	Description
enabled	bool	No	Turns archival on. Omitting the whole block is equivalent to false.
profileName	string	Yes when enabled	Name of a spec.backup.profiles[] entry. Binlog objects and per-site manifests live under a binlogs/ subprefix inside that profile's storage.
maxBinlogSize	string	No	Passed to MySQL as max_binlog_size. Controls rotation cadence (and therefore the RPO gap). Default "100M".
archivePollInterval	duration	No	Belt-and-suspenders scan cadence alongside inotify. Default "60s".

InitFromBackupSpec (spec.initFromBackup)

One-shot restore-on-first-boot. The operator runs a restore Job against the initial primary site before normal bootstrap is considered complete. Once status.restore.phase == Succeeded, subsequent reconciles skip the restore even if this field is still set.

Field	Type	Required	Description
source	InitFromBackupSource	Yes	Tagged reference: exactly one of mysqlBackupRef, s3, or pvc.
loadOptions	LoadOptions	No	util.loadDump() tuning (threads, resetProgress, skipBinlog, loadIndexes, schema filters).
pointInTime	PointInTimeSpec	No	Post-load binlog replay to a specific target timestamp. Requires the source group to have had spec.backup.pitr.enabled=true at backup time.
decryption	BackupDecryptionSpec	No	Passphrase to decrypt the source backup and any replayed binlogs. For same-group mysqlBackupRef, the operator falls back to the profile's own passphrase when omitted.

RestoreInPlaceSpec (spec.restoreInPlace)

Re-triggerable destructive restore against the currently-active primary. Unlike initFromBackup (one-shot, greenfield), this field is meant to be edited repeatedly: bumping confirm to a newer RFC 3339 timestamp re-arms another restore. See RestoreInPlaceSpec in the source for full semantics (full-instance vs. per-schema restores).

Field	Type	Required	Description
confirm	string	Yes	Anti-fat-finger token. Must be an RFC 3339 timestamp strictly greater than status.restoreInPlace.confirmTokenUsed.
source	InitFromBackupSource	Yes	Tagged reference: one of mysqlBackupRef, s3, or pvc.
loadOptions	LoadOptions	No	util.loadDump() tuning. For per-schema restores, skipBinlog is force-set to false so the DROP+load replicates.
pointInTime	PointInTimeSpec	No	Post-load binlog replay.
decryption	BackupDecryptionSpec	No	Same semantics as InitFromBackupSpec.Decryption.

PointInTimeSpec (spec.initFromBackup.pointInTime)

Requests binlog replay on top of the loaded dump. Requires the source failover group to have had spec.backup.pitr.enabled=true at the time of the full dump — otherwise there is no archive to replay.

Field	Type	Required	Description
stopDatetime	string	Yes	Replay target. Accepts RFC 3339 (2026-04-15T09:30:00Z) or MySQL's native form (2026-04-15 09:30:00).
excludeGtids	string	No	Forwarded verbatim as mysqlbinlog --exclude-gtids=... to surgically skip known-bad transactions while replaying everything else.

DragonflySpec (spec.dragonfly)

Optional cache/session sidekick management. Omitting this field or setting enabled: false preserves MySQL-only behavior and removes previously managed Dragonfly resources.

Field	Type	Required	Default	Description
enabled	bool	No	false	Creates and manages one Dragonfly StatefulSet per site when true.
image	string	Yes when enabled	--	Pinned Dragonfly image. :latest is rejected. Use Dragonfly v1.38.0+.
port	int	No	6379	Redis-compatible client port.
adminPort	int	No	9999	Admin/control port used by the operator.
maxMemoryMb	int	No	--	Renders Dragonfly --maxmemory=<value>mb when non-zero.
proactorThreads	int	No	--	Renders Dragonfly --proactor_threads=<value> when non-zero.
args	[]string	No	--	Extra Dragonfly args. Operator-owned flags such as --port, --admin_port, --requirepass, --dir, S3 flags, and --break_replication_on_master_restart are filtered out.
auth	DragonflyAuthSpec	No	--	Secret reference for the Dragonfly password. The operator renders --requirepass and authenticates its own connections.
resources	ResourceRequirements	No	--	Compute resources for each Dragonfly container.
plannedFailover	DragonflyPlannedFailoverSpec	No	{maxSyncWait: 30s, onSyncTimeout: proceed}	Planned-failover sync and timeout behavior.
snapshot	DragonflySnapshotSpec	No	--	Native Dragonfly snapshot directory and optional S3-compatible settings for planned snapshot-restore upgrades.

DragonflyAuthSpec

Field	Type	Required	Default	Description
secretName	string	Yes	--	Secret containing the Dragonfly password.
passwordKey	string	No	password	Secret key containing the password.

DragonflyPlannedFailoverSpec

Field	Type	Required	Default	Description
maxSyncWait	duration	No	30s	Maximum time to wait for target Dragonfly replica catch-up. Also used as the REPLTAKEOVER timeout.
onSyncTimeout	string	No	proceed	proceed continues MySQL promotion and records sessionsPreserved=false; fail rolls back before MySQL promotion.

DragonflySnapshotSpec

Field	Type	Required	Description
dir	string	No	Passed to Dragonfly as --dir. Use s3://bucket[/prefix] for S3-compatible snapshot/restore support.
serviceAccountName	string	No	ServiceAccount assigned to Dragonfly pods for cloud IAM access.
credentialsSecretName	string	No	Secret projected as AWS credential environment variables for S3-compatible snapshot access.
s3Endpoint	string	No	S3-compatible endpoint passed as --s3_endpoint.
s3UseHTTPS	bool	No	Passed as --s3_use_https when set.
s3SignPayload	bool	No	Passed as --s3_sign_payload when set.

Full example

apiVersion: shipstream.io/v1alpha1
kind: MysqlFailoverGroup
metadata:
  name: orders
spec:
  image: mysql:9.6
  sidecarImage: ghcr.io/shipstream/bloodraven-sidecar:latest
  sites:
    - name: iad
      zone: us-east-1a
      taintNodeSelector:
        shipstream.io/failover-group.orders: "true"
        shipstream.io/site.orders: iad
      lbIP: 10.0.1.1
      storage:
        storageClassName: fast-ssd
        size: 100Gi
      resources:
        requests:
          cpu: "2"
          memory: "16Gi"
        limits:
          cpu: "4"
          memory: "16Gi"
    - name: pdx
      zone: us-west-2a
      taintNodeSelector:
        shipstream.io/failover-group.orders: "true"
        shipstream.io/site.orders: pdx
      lbIP: 10.0.2.1
      storage:
        storageClassName: fast-ssd
        size: 100Gi
      resources:
        requests:
          cpu: "2"
          memory: "16Gi"
        limits:
          cpu: "4"
          memory: "16Gi"
  secretName: mysql-credentials
  sidecarResources:
    requests:
      cpu: "100m"
      memory: "64Mi"
    limits:
      cpu: "200m"
      memory: "128Mi"
  dns:
    hostname: orders.az.example.com
    ttl: 60
  tls:
    issuerRef:
      name: letsencrypt
      kind: ClusterIssuer
    secretName: mysql-tls
  pollInterval: 2s
  failureThreshold: 3
  recoveryThreshold: 2
  failoverCooldown: 5m
  mysqlConf:
    innodb_buffer_pool_size: "8G"
    max_connections: "500"
    innodb_flush_log_at_trx_commit: "1"
    sync_binlog: "1"
  replication:
    maxLagSeconds: 300
  updateStrategy: OrderedUpdate
  dragonfly:
    enabled: true
    image: docker.dragonflydb.io/dragonflydb/dragonfly:v1.38.0
    plannedFailover:
      maxSyncWait: 30s
      onSyncTimeout: proceed
  cloneTimeout: 3600
  podLabels:
    cost-center: platform
  podAnnotations:
    prometheus.io/scrape: "true"
    prometheus.io/port: "9104"
  serviceTemplate:
    type: ClusterIP
    annotations:
      service.beta.kubernetes.io/aws-load-balancer-internal: "true"
  extraContainers:
    - name: mysqld-exporter
      image: prom/mysqld-exporter:latest
      env:
        - name: DATA_SOURCE_NAME
          valueFrom:
            secretKeyRef:
              name: mysql-monitor-creds
              key: dsn
      ports:
        - containerPort: 9104

Full example (credentials mode)

apiVersion: shipstream.io/v1alpha1
kind: MysqlFailoverGroup
metadata:
  name: orders
spec:
  image: mysql:9.6
  sidecarImage: ghcr.io/shipstream/bloodraven-sidecar:latest
  sites:
    - name: iad
      zone: us-east-1a
      taintNodeSelector:
        shipstream.io/failover-group.orders: "true"
        shipstream.io/site.orders: iad
      lbIP: 10.0.1.1
      storage:
        storageClassName: fast-ssd
        size: 100Gi
    - name: pdx
      zone: us-west-2a
      taintNodeSelector:
        shipstream.io/failover-group.orders: "true"
        shipstream.io/site.orders: pdx
      lbIP: 10.0.2.1
      storage:
        storageClassName: fast-ssd
        size: 100Gi
  credentials:
    operatorSecret: mysql-operator-creds
    appSecret: mysql-app-creds
    monitorSecret: mysql-monitor-creds
    backupSecret: mysql-backup-creds
  dns:
    hostname: orders.az.example.com
    ttl: 60

Each referenced Secret must contain username and password keys. The operator secret additionally requires MYSQL_ROOT_PASSWORD:

apiVersion: v1
kind: Secret
metadata:
  name: mysql-operator-creds
stringData:
  username: bloodraven
  password: <operator-password>
  MYSQL_ROOT_PASSWORD: <root-password>
---
apiVersion: v1
kind: Secret
metadata:
  name: mysql-app-creds
stringData:
  username: app
  password: <app-password>

Status

The operator writes the following status fields.

Top-level status

Field	Type	Description
activeSite	string	Name of the site currently serving as primary
sites	[]SiteStatus	Per-site status
conditions	[]Condition	Standard Kubernetes conditions
lastFailover	timestamp	When the last failover occurred
lastFailoverTarget	string	Which site was promoted in the last failover
promotionGtidExecuted	string	GTID set recorded on the candidate at the moment of the most recent promotion, before it began accepting writes. Used for data-loss accounting.
updatePhase	string	Current phase of an ordered update; empty when not updating.
restore	RestoreStatus	In-flight or completed initFromBackup restore (phase, JobName, targetSite, startTime, completionTime, message).
restoreInPlace	RestoreInPlaceStatus	In-flight or completed in-place restore (phase, JobName, targetSite, scope, confirmTokenUsed, startTime, completionTime, message). Mirrors the state machine described on RestoreInPlaceSpec.
backupSchedules	[]BackupScheduleStatus	Per-schedule rollup (cronJobName, lastScheduleTime, lastSuccessfulTime, lastBackupName, lastBackupPhase, lastSuccessfulBackupName, lastRetryAttempt, nextRetryTime).
lastBackupTime	timestamp	Completion time of the most recent successful MysqlBackup across all profiles, regardless of whether it was scheduled or on-demand.
pitr	PITRStatus	Summary of the continuous binlog archive, populated by the operator from periodic polls of each sidecar's /archiver/status endpoint. Present when spec.backup.pitr.enabled=true.
plannedFailover	PlannedFailoverStatus	Most-recent planned (admin-triggered) failover attempt. Retained until a newer annotation replaces it; how kubectl describe tells the story of a switchover after the fact.
dragonfly	DragonflyStatus	Observed Dragonfly subsystem state when spec.dragonfly.enabled=true: active site, phase, per-site roles, reachability, replication health, last promotion, and snapshot-upgrade status.

SiteStatus

Field	Type	Description
name	string	Site identifier
state	string	Current state: writable, read-only, unreachable, or unknown
lastSeen	timestamp	Last time the operator successfully polled this site
replicating	bool	Whether this site is replicating from another site
secondsBehindSource	int	Replication lag in seconds (only set when replicating)
gtidExecuted	string	GTID set executed on this site
recoveryState	string	Old-primary recovery state: empty (no recovery needed), RecoveryInProgress (the operator is reconfiguring or waiting for the site to stabilize as a replica), or RecoveryBlocked (divergent transactions detected — trigger a reclone to recover)
divergentGtid	string	GTID set of transactions on this site that diverge from the current primary. Populated when recoveryState is RecoveryBlocked.
divergentTransactionCount	int	Number of divergent transactions. Populated when recoveryState is RecoveryBlocked.

Conditions

Type	Meaning
Ready	True when the failover group has one writable primary and all replicas are healthy
Degraded	True when replication is broken, lag exceeds maxLagSeconds, or a site is unreachable
RecoveryPending	True while old-primary recovery is running (RecoveryInProgress) or when an old primary has divergent transactions (DivergentTransactions). Use the reclone annotation only for DivergentTransactions.
Bootstrapping	True when a clone operation is in progress (fresh-deploy, auto-clone, or reclone). Reason indicates the phase.

DragonflyStatus

Field	Type	Description
enabled	bool	Mirrors spec.dragonfly.enabled at last observation.
activeSite	string	Site currently acting as Dragonfly master. Usually matches status.activeSite; may briefly diverge during planned failover.
phase	string	Disabled, Reconciling, ConfiguringReplication, Ready, Degraded, or Promoting.
message	string	Human-readable status summary.
lastPromotionTime	timestamp	Last successful Dragonfly promotion time.
lastPromotionTarget	string	Site promoted in the last successful Dragonfly promotion.
sites	[]DragonflySiteStatus	Per-site Dragonfly observation.
upgrade	DragonflyUpgradeStatus	Snapshot-restore upgrade progress when requested by annotation.

DragonflySiteStatus

Field	Type	Description
name	string	Site identifier.
role	string	master, replica, stale-master, unconfigured, unreachable, or unknown.
reachable	bool	Whether the operator completed an INFO replication call on the latest poll.
serviceName	string	Site-local Dragonfly Service name.
podName	string	Dragonfly pod name when known.
replicationState	string	Raw Dragonfly role value from INFO replication.
linkStatus	string	Replica master_link_status; empty on a master.
syncInProgress	bool	Whether Dragonfly reports a full sync in progress.
lastIOSecondsAgo	int	Seconds since the replica last received data from its master; -1 means never.
ready	bool	Operator-level readiness for the Dragonfly role.
message	string	Human-readable per-site status.

Annotations

Annotation	Description
bloodraven.shipstream.io/reclone-site	Triggers a CLONE INSTANCE from the current primary to the named site. Value format depends on the target's state: <site>:confirm=<group-name> for a cold reclone (no divergent GTID recorded), or <site>:<gtid-prefix> when status.sites[].divergentGtid is non-empty — the prefix must be 8+ characters and match the observed divergent GTID. Both forms act as a fat-finger interlock (cold path added by AUDIT L3 / WISHLIST #5). Invalid annotations are rejected with a RecloneRejected Warning Event and cleared. Valid ones emit RecloneRequested and report progress via the Bootstrapping condition.
bloodraven.shipstream.io/planned-failover	Starts a planned failover to the named site. When Dragonfly is enabled, the planned-failover status includes a dragonfly substatus with session-preservation details.
bloodraven.shipstream.io/dragonfly-snapshot-upgrade	Starts the Dragonfly snapshot-restore upgrade workflow to the target image. Requires spec.dragonfly.snapshot to be configured.

Example status

status:
  activeSite: iad
  sites:
    - name: iad
      state: writable
      lastSeen: "2025-01-01T00:00:00Z"
      replicating: false
    - name: pdx
      state: read-only
      lastSeen: "2025-01-01T00:00:00Z"
      replicating: true
      secondsBehindSource: 0
      gtidExecuted: "uuid:1-100"
  conditions:
    - type: Ready
      status: "True"
    - type: Degraded
      status: "False"
  lastFailover: "2025-01-01T00:00:00Z"
  lastFailoverTarget: iad
  dragonfly:
    enabled: true
    activeSite: iad
    phase: Ready
    message: all sites ready
    sites:
      - name: iad
        role: master
        reachable: true
        ready: true
      - name: pdx
        role: replica
        reachable: true
        linkStatus: up
        ready: true

---

MysqlStandbyCluster

Phase 1 of WISHLIST #7. A passive DR relationship descriptor that lives on the DR cluster and continuously monitors a source MysqlFailoverGroup's backup archive in a shared object store. The controller populates status.discovered and stamps readiness conditions on a configurable cadence. No mysqld is started; no dump is loaded in Phase 1.

See Multi-cluster DR for the end-to-end recovery runbook and a full explanation of what Phase 1 does and does not provide.

Top-level spec fields

Field	Type	Required	Default	Description
transport	string	No	ObjectStore	Transport mode. Only ObjectStore is honored in v1alpha1; Network is reserved.
source	StandbySource	Yes	--	Identifies the source archive: bucket, prefix, profile name, optional decryption.
template	StandbyFailoverGroupTemplate	Yes	--	Embedded MysqlFailoverGroupSpec the controller will materialize on activation (Phase 3). Required (not optional) so the full activated topology is validated at standby-CR-create-time while the cluster is calm, rather than failing late mid-incident during a promote. Declare it now, not during an outage.
freshness	StandbyFreshnessSpec	No	--	Phase 1 bucket-discovery cadence (discoveryInterval only).

StandbySource

Field	Type	Required	Description
failoverGroupName	string	Yes	Source MysqlFailoverGroup name. Informational; used in events and status.
namespace	string	No	Source MFG namespace in its own cluster. Informational.
cluster	string	No	Free-form source cluster identifier (e.g. us-west-prod). Informational.
storage	BackupStorage	Yes	Object-store backend (same shape as spec.backup.profiles[].storage). The controller refuses to write to it.
profileName	string	Yes	Backup profile name under which dumps and binlogs are stored.
decryption	BackupDecryptionSpec	No	Passphrase Secret to decrypt source artifacts. Must exist in the DR namespace.

StandbyFreshnessSpec

Field	Type	Default	Description
discoveryInterval	duration	5m	How often the controller re-scans the bucket to refresh status.discovered. Minimum 30s.

The Phase 2 verification cadence and staleness knobs (verifySchedule, verifyTimeZone, maxStaleness, suspend, retentionFloorRefresh) and the Phase 3 spec.activate block are not part of v1alpha1. They will be added back (backward-compatibly) when the code that consumes them ships. Until then they are absent from the structural schema, so they have no effect: the API server prunes them (they are silently dropped and never persisted), and clients using strict server-side field validation — the default for kubectl apply/create since Kubernetes 1.25 — reject them outright.

Status

Field	Type	Description
discovered	StandbyDiscovered	Most recent successful bucket scan: dump location, name, completion time, GTID set, size, and binlog window timestamps. Encryption detection (BRV1 header) is deferred to Phase 2.
lastVerified	StandbyLastVerified	Most recent terminal MysqlBackupVerification owned by this CR (Phase 2).
activation	StandbyActivationStatus	One-shot promote audit trail: phase, source/target GTIDs, PITR stop datetime, replayed binlog count, active site, reason, message (Phase 3).
materializedFailoverGroup	string	Name of the MysqlFailoverGroup created during activation. Empty until Activated (Phase 3).
conditions	[]Condition	Standard Kubernetes conditions. See below.

Conditions

Type	Phase populated	Meaning
BucketReadable	Phase 1	Bucket scan succeeded within the last discovery interval. Reason: ListSucceeded (True), ListFailed (False), ScanIncomplete (False — the List call did not complete before the scan deadline; a context deadline/cancel during List, distinct from a genuine ListFailed. The previous status.discovered is preserved), AuthFailed (False — store construction failed, e.g. bad credentials), or ConfigError (False — missing/invalid spec fields).
SourceConfigKnown	Phase 1	At least one full dump and one binlog manifest were found. Reason: DumpFound (True), NoDumpFound (False), NoBinlogManifests (False — dump found, no PITR window yet: a dump exists but no binlog manifests are under <prefix>/binlogs/, so recovery is limited to the dump. This is the expected state for a dump-only source or a brand-new source, not a misconfiguration), MetadataUnreadable (False — dump @.json present but genuinely malformed/cannot be parsed), ScanIncomplete (False — the scan was cut short by a context deadline/cancel before reading every dump @.json or all manifests; the partial selection is not published, the previous status.discovered is preserved as last-known-good, and no BucketScanned event is emitted), or ConfigError (False — propagated from storage backend error). The default kubectl get printcolumn surfaces this as the neutral SourceKnown.
Restorable	Phase 2	Most recent owned MysqlBackupVerification is Succeeded and within a future staleness threshold (Phase 2).
ActivationInProgress	Phase 3	True while activation phase is non-terminal.
Active	Phase 3	True when status.activation.phase == Activated.
