Log schema contract

Bloodraven emits structured JSON logs from both the operator (bloodraven) and the per-MySQL sidecar (bloodraven-sidecar). This page is the contract that downstream log pipelines key off of: which fields are stable, what the msg values are for the events you care about, and what guarantees we make about changing them.

If you only need one rule of thumb: filter on msg for the event vocabulary in the Event reference below — those strings are stable. Everything else is best-effort.

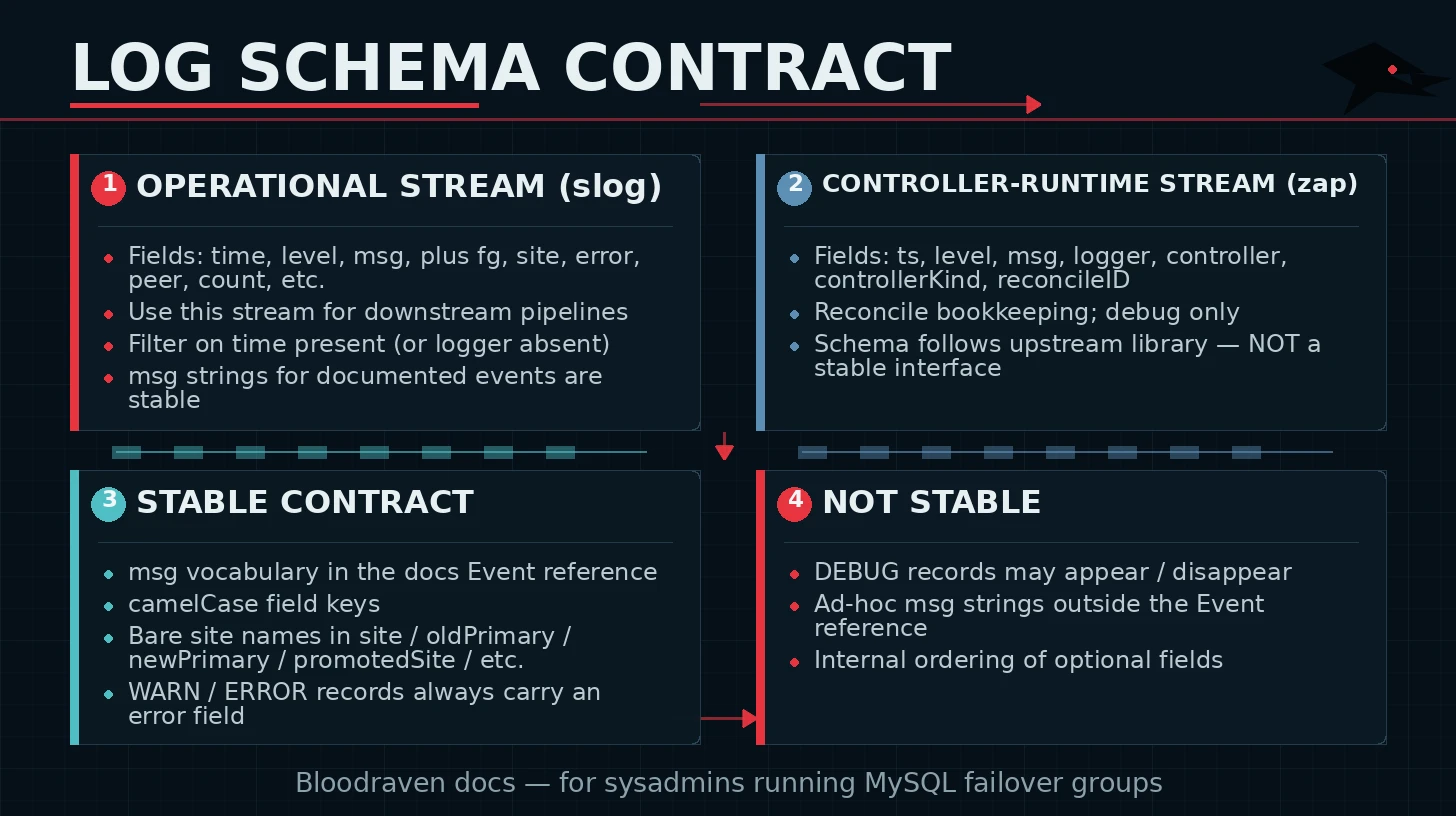

Streams

Both binaries write to stdout. There are two independent JSON streams; you can tell them apart by the presence of certain keys.

Stream	Source	Identifies as	What's in it
Operational (slog)	Operator and sidecar	Has time, level, msg	Failover, promotion, bootstrap, recovery, fencing, archiver, sidecar startup, divergence detection — every event a human operator or alerting pipeline would care about
Controller-runtime (zap)	Operator only	Has ts, level, msg, logger, controller, controllerKind, reconcileID	Reconcile-loop bookkeeping from controller-runtime: CR fetches, status updates, watch events. Useful for debugging, not a stable interface

The contract on this page applies to the operational stream. The controller-runtime stream is emitted as-is by upstream sigs.k8s.io/controller-runtime and inherits whatever shape that library produces — we don't redefine it.

To filter to operational logs in most pipelines, key on the presence of the time field (slog) or the absence of the logger field (zap).

Common fields

Every record in the operational stream carries:

Field	Type	Description
time	RFC3339Nano timestamp (string)	Event time, normalized to UTC by the binary's slog handler regardless of pod timezone. Always ends in Z.
level	string	One of DEBUG, INFO, WARN, ERROR.
msg	string	The event identifier. Stable for events listed in the Event reference; may change for ad-hoc debug logs.

Records emitted under a specific failover group also carry:

Field	Type	Description
fg	string	The MysqlFailoverGroup namespaced name (namespace/name). Present on every operator log scoped to a group. On the sidecar, this is the bare group name passed via BLOODRAVEN_FAILOVER_GROUP.

Sidecar records additionally carry:

Field	Type	Description
pod	string	The pod name (set via BLOODRAVEN_POD_NAME). Disambiguates per-replica logs when shipping multiple sites' sidecars to one stream.

Levels

Level	When
DEBUG	Per-poll bookkeeping (status no-ops, transient probe errors, archiver tick events). Off by default — the operator's slog handler is set to INFO.
INFO	State changes the operator deliberately took: failover, promotion, bootstrap, recovery, sidecar lifecycle. Most of the event vocabulary lives here.
WARN	Degraded but not fatal: a single retry, a peer briefly unreachable, a non-critical operation that failed (connection kill, taint patch). The operator continues.
ERROR	Operator-affecting failure: failover failed, self-fence triggered, status update rejected by the API server, CronJob-pod startup validation failed. Always paired with an error field (a string carrying either the underlying error or, for validation failures, a description of what was missing).

DEBUG records may appear or disappear without notice. INFO/WARN/ERROR msg strings listed below are stable.

Field naming convention

• Keys are camelCase. Common keys: site, fg, error, peer, count, source, donor, recipient.
• Site identifiers (site, oldPrimary, newPrimary, promotedSite, donor, recipient, activeSite, authoritativeActiveSite) all carry the bare site name as defined in spec.sites[].name.
• GTID fields (promotionGtid, divergentGtid, oldPrimaryGtid, newPrimaryGtid) carry MySQL GTID-set strings exactly as MySQL returns them — never parsed or canonicalised.
• Counts (count, divergentTransactions, attempt, maxRetries) are JSON numbers, not strings.
• Durations (leaseTimeout, pollInterval, delay) are emitted by slog's default time.Duration rendering — currently a string like "30s". Treat as opaque if you need to parse, prefer the metric of the same name.

Event reference

This is the stable vocabulary. msg strings here will not change without a deprecation note in CHANGELOG.md.

Failover

The four events that trace one failover, in order:

Level	msg	Fields	Fired when
INFO	initiating failover	candidate, oldPrimary, fg	Operator has chosen a promotion target and is about to flip DNS and run the promotion sequence.
INFO	failover complete	promotedSite, promotionGtid, fg	Execute finished: candidate is writable. promotionGtid is the candidate's gtid_executed snapshot taken just before clearing super_read_only — the upper bound on data that survived.
INFO	promotion confirmed: site is writable	site, fg	Next poll observes the promoted site is writable. The internal post-failover guard clears here.
ERROR	failover failed	error, fg	The promotion sequence returned an error. The operator does not retry automatically; the next eligible state-transition tick will re-evaluate.

Supporting events emitted inside Execute:

Level	msg	Fields
INFO	fenced old primary with super_read_only=ON	fg
WARN	failed to fence old primary (may be unreachable)	error, fg
INFO	killed app connections on old primary	count, fg
WARN	failed to kill app connections on old primary	error, fg
INFO	relay log drain complete	fg
WARN	relay log drain did not complete cleanly, proceeding with promotion	error, fg

Divergence and recovery

Fired after an emergency failover when the operator inspects the returning old primary.

Level	msg	Fields	Notes
INFO	initiating old primary recovery	oldPrimary, newPrimary, fg	Recovery sequence starting.
INFO	no GTID divergence, auto-recovering old primary as replica	site, fg	Old primary's GTID set is a subset of the new primary's — safe to attach as replica.
WARN	divergence detected	site, divergentTransactions, divergentGtid, oldPrimaryGtid, newPrimaryGtid, fg	Old primary has committed transactions the new primary never saw. Operator does not auto-recover — admin must reclone. Mirrored by the bloodraven_divergent_transactions gauge and the DataLossDetected Kubernetes Event.
INFO	old primary recovery complete	site, source, fg	Old primary is now replicating from the new primary. source is the new primary's host.
ERROR	old primary recovery failed	site, error, fg	One step of the recovery sequence (fence / GTID query / CHANGE REPLICATION SOURCE / START REPLICA) returned an error.

Bootstrap and reclone

starting bootstrap is the single canonical event for "we are about to clone a replica". The source field disambiguates why:

source value	Meaning
fresh-deploy	Initial bootstrap of a new failover group; donor is the seed site.
auto-clone	Operator detected an empty replica during steady-state and is recovering it without an admin trigger.
reclone	Admin set the bloodraven.shipstream.io/reclone-site=<name> annotation, the safety interlock passed, and the operator is wiping the named site. This is the reclone-started event.

Level	msg	Fields
INFO	starting bootstrap	source, donor, recipient, donorHost, fg
INFO	cloning from primary	donor, fg
INFO	clone completed successfully	replica, fg
INFO	setting up replication	source, fg
INFO	replication started successfully	source, fg
INFO	bootstrap completed successfully	source, fg
ERROR	bootstrap failed	source, error, fg
INFO	clone returned expected connection drop, waiting for restart	error, fg
INFO	replica already has primary data (prior clone detected), skipping clone phase	fg

A reclone-only narrative is therefore: filter msg="starting bootstrap" AND source="reclone" for the trigger event, then watch for bootstrap completed successfully (source="reclone") or bootstrap failed (source="reclone").

State transitions

Every per-site state change emits one record. Use this to replay the topology timeline.

Level	msg	Fields
INFO	state transition	site, from, to, fg

from and to values: unknown, unreachable, read-only, writable. Mirrored by the bloodraven_state_transitions_total counter.

Topology decisions

Level	msg	Fields	Notes
WARN	ALERT	message, fg	A cross-site EvalCrossSite action returned an alert string (split brain, no primary, total loss). The same conditions emit SplitBrainDetected / NoPrimaryDetected / TotalLossDetected Kubernetes Events.
WARN	split-brain auto-resolve: fencing non-preferred site per spec.splitBrainPolicy.sitePriorities	(context)	Opt-in splitBrainPolicy is fencing the lower-priority site.
INFO	failover blocked by anti-flap cooldown	(context)	A failover decision was deferred because failoverCooldown has not elapsed since the last one.
INFO	cross-site action deferred: in-place restore in progress	fg	Decisions are paused while restoreInPlace runs.
INFO	cross-site action deferred: planned failover in progress	fg	Decisions are paused while a planned-failover annotation is being processed.

Sidecar fencing

The per-MySQL sidecar emits these in its operational stream. SELF-FENCING: is a stable prefix — msg strings that begin with it indicate the sidecar wrote super_read_only=ON to its local MySQL without operator instruction.

Level	msg	Fields	Notes
ERROR	SELF-FENCING: topology mismatch — operator-authoritative active site disagrees with our site, setting super_read_only=ON	site, authoritativeActiveSite, observedAt, pod	The operator (or a peer relaying the operator's view) reports a different active site than this sidecar is on. Fired even when the operator is reachable.
ERROR	SELF-FENCING: Bloodraven and every peer unreachable beyond lease timeout, setting super_read_only=ON	bloodravenLastOk, latestPeerOk, peers, leaseTimeout, pod	Backstop rule: nothing is reachable, so we can't be sure we're still primary.
INFO	SELF-FENCING: killed app connections	count, pod	Connection kill after fencing succeeded.
ERROR	SELF-FENCING FAILED: could not set super_read_only	error, pod	The fence write itself failed. The sidecar retries on the next tick.
ERROR	SELF-FENCED: super_read_only=ON has been set, only Bloodraven can restore	pod	Final status; the sidecar will not unfence on its own. The next operator promotion clears it.
INFO	fencing: adopted active-site view from peer	peer, activeSite, observedAt, pod	Peer sidecar relayed a fresher view than what this sidecar had cached. Drives the topology-mismatch rule.

Safety-net events (sidecar startup):

Level	msg	Fields
INFO	safety net: set super_read_only=ON as precaution on startup	pod
INFO	safety net: this is the active site, clearing super_read_only	site, pod
INFO	safety net: confirmed standby site, staying fenced	site, activeSite, pod
INFO	safety net: no active site reported by operator, staying fenced	pod
WARN	safety net: could not query active site, staying fenced	error, pod
ERROR	safety net: failed to clear super_read_only on active site	error, pod

PITR archiver

Emitted by the sidecar's BinlogArchiver.

Level	msg	Fields
INFO	binlog archiver starting	storageType, binlogDir, binlogIndex, pollInterval, pod
INFO	archived sealed binlogs	count, pod
INFO	retention sweep complete	(sweep stats), pod
WARN	archive binlog	file, error, pod
WARN	retention: delete object	key, error, pod

Per-upload success/failure is also reflected in the bloodraven_archiver_upload_failures and bloodraven_archiver_last_upload_timestamp_seconds metrics — prefer those for alerting.

Dragonfly

Bloodraven optionally co-manages per-site Dragonfly instances and emits the following events when spec.dragonfly.enabled=true. Mirrored by the bloodraven_dragonfly_site_up gauge and the bloodraven_dragonfly_promotions_total{result} counter, plus the matching Dragonfly* Kubernetes Events on the MysqlFailoverGroup.

Level	msg	Fields	Notes
INFO	dragonfly: configured replica	site, host, port, fg	Operator issued REPLICAOF against a non-active site to align it with the active master.
WARN	dragonfly: stale master on non-active site	site, active, fg	A site reports role=master but is not the active site. Auto-rejoin is attempted only when the stale instance has connected_slaves=0 AND master_repl_offset=0 (provably never accepted writes); otherwise the stale master is shed from the active Service via the traffic-label gate and left for human intervention.
INFO	stale-master reconfigure: REPLICAOF applied	site, host, port, fg	Auto-rejoin succeeded: the stale master is now linked as a replica of the active master.
WARN	stale-master reconfigure: REPLICAOF failed	site, host, port, error, fg	Auto-rejoin attempt failed; the next tick retries.
INFO	client-kill: evicted clients from old master	site, fg	After a planned-failover Dragonfly promotion, the operator issued CLIENT KILL TYPE NORMAL against the demoted source so application clients reconnect through the active Service.
INFO	dragonfly/mysql active-site drift: promoting Dragonfly replica to match MySQL	oldSource, target, mysqlActiveSite, fg	MySQL active site and Dragonfly master diverged; the manager is promoting the synced Dragonfly replica on the MySQL active site.
INFO	dragonfly-only emergency: active master unreachable; promoting replica	oldSource, target, fg	Dragonfly master failed without a MySQL failover; the manager is promoting the single healthy replica and leaving MySQL status.activeSite unchanged.
INFO	dragonfly emergency: REPLTAKEOVER succeeded	site, fg	After an emergency MySQL failover, Dragonfly was promoted with sessions preserved.
WARN	dragonfly emergency: REPLTAKEOVER failed; falling back	site, error, fg	Emergency promote could not preserve sessions; falling back to REPLICAOF NO ONE.
INFO	dragonfly emergency: target promoted via REPLICAOF NO ONE (sessions lost)	site, fg	Emergency promote completed with empty cache.
WARN	dragonfly emergency: REPLICAOF NO ONE failed	site, error, fg	Both promotion paths failed; cache is unavailable. MySQL emergency failover was not affected.
WARN	dragonfly emergency: target unreachable; skipping promotion	site, error, fg	Bounded budget expired before the operator could reach the target.

Kubernetes Event reasons emitted on the MysqlFailoverGroup (visible via kubectl describe):

Reason	When
DragonflyPromotionStarted	Planned-failover state machine entered PromotingDragonfly.
DragonflyPromotionCompleted	Dragonfly target was promoted (planned or emergency).
DragonflyPromotionFailed	Promotion command failed; behavior depends on spec.dragonfly.plannedFailover.onSyncTimeout (planned) or is best-effort (emergency).
DragonflyStaleMasterDetected	A non-active site reports master role. Logged + dedup'd in 5-minute windows. Auto-rejoin is attempted in reconcileReplication when connected_slaves=0 AND master_repl_offset=0.
DragonflyOldSiteReconfigured	A stale master passed the auto-rejoin gate and was attached as a replica of the active master via REPLICAOF.
DragonflySyncTimeout	WaitingForDragonflySync exhausted spec.dragonfly.plannedFailover.maxSyncWait.
DragonflyUpgradeStarted	Snapshot-restore Dragonfly upgrade annotation was accepted and status.dragonfly.upgrade was initialized.
DragonflyUpgradeRejected	Snapshot-restore upgrade request was invalid or another coordinated operation was running.
DragonflyUpgradeSnapshotStarted	Active Dragonfly traffic was shed and the operator is about to issue SAVE.
DragonflyUpgradeSnapshotCompleted	SAVE completed against the active Dragonfly master using spec.dragonfly.snapshot.dir.
DragonflyUpgradeCompleted	Active and replica Dragonfly pods are on the target image, active traffic is restored, and replicas are linked.
DragonflyUpgradeFailed	Snapshot-restore upgrade reached a terminal failure; the operator best-effort restored active traffic.

Lifecycle

Level	msg	Fields
INFO	starting bloodraven manager	(none)
INFO	starting auxiliary HTTP server	addr
INFO	topology manager runner starting	(none)
INFO	starting topology manager	fg
INFO	topology manager stopped	fg
INFO	stopping topology manager	fg
INFO	config changed, restarting topology manager	fg
INFO	restored lastFailoverTarget from CR status	fg, target
INFO	starting graceful shutdown	fg
INFO	CR deleted — DNSEndpoint will be garbage-collected	(none)
INFO	sidecar starting	listenAddr, peerAddresses, bloodravenAddress, leaseTimeout, peerCheckInterval, site, namespace, fg, pod
INFO	sidecar stopped	pod
INFO	received signal, shutting down	signal, pod

Stability commitments

What	Stability
msg strings listed in the Event reference	Stable. Changes go through a deprecation note in CHANGELOG.md.
Field names listed alongside a stable msg	Stable. New fields may be added to existing events; existing fields will not be renamed or removed without a deprecation note.
Field value shapes (strings, numbers, durations)	Stable for the values listed. GTIDs are passed through verbatim from MySQL — their shape is whatever MySQL emits.
time, level, msg field names themselves	Stable. Tied to log/slog defaults.
DEBUG-level records	Unstable. May appear, disappear, or change shape without notice. Disabled by default.
Ad-hoc INFO/WARN/ERROR records not listed above (e.g. retry warnings, transient probe errors)	Best-effort. Field set is intended to be useful but not contractual. Don't build alerts that key on the exact msg string.
Controller-runtime (zap) stream	Inherited from upstream. Bloodraven does not redefine this stream's shape.

Pipeline integration tips

Filtering operational vs. controller-runtime

Most aggregators (Loki, Elasticsearch, Vector) let you split streams by JSON shape. A reliable predicate:

$.time && $.msg   // operational (slog)
$.ts && $.logger  // controller-runtime (zap)

Per-event alerts

Because every key event has a stable msg, pipeline alerts can be expressed as exact-match filters rather than fragile regexes. Examples for Loki:

# Failover started
{app="bloodraven"} | json | msg = "initiating failover"

# Failover failed (escalate)
{app="bloodraven"} | json | level = "ERROR" and msg = "failover failed"

# Divergence requires manual reclone
{app="bloodraven"} | json | msg = "divergence detected"

# Reclone triggered (track who/what asked for it via fg + recipient)
{app="bloodraven"} | json | msg = "starting bootstrap" and source = "reclone"

# Sidecar self-fenced — page on this
{app="bloodraven-sidecar"} | json | msg =~ "^SELF-FENCING:"

Correlating with metrics and Kubernetes Events

Several stable log events are mirrored by other observable signals — when one fires, the others fire too:

Log event	Metric	Kubernetes Event
failover complete	bloodraven_failovers_total{target_site}	FailoverExecuted
divergence detected	bloodraven_divergent_transactions{site} > 0	DataLossDetected
old primary recovery complete	bloodraven_divergent_transactions{site} returns to 0	RecoveryComplete
state transition	bloodraven_state_transitions_total{site, from, to}	(none — too noisy for events)

Prefer metrics for alert thresholds and Kubernetes Events for human notification routing; logs are richest for forensics and timeline reconstruction.

Useful structured fields to index

If your pipeline supports indexing specific fields, the high-value ones are:

• fg — partitions everything by failover group
• site (and oldPrimary / newPrimary / promotedSite / donor / recipient) — for per-site timelines
• level — for severity routing
• source — for bootstrap/reclone disambiguation
• error — full error string from the operator's error chain
