Operator availability

Bloodraven is deliberately not a highly-available control plane. It runs as a single-replica Deployment with controller-runtime leader election enabled as a safety belt, and this page documents exactly what that means for the data plane — especially for the uncomfortable case of a primary failure that happens while the operator is also down.

Design stance

• One active operator at a time. Leader election is on by default (charts/bloodraven/values.yaml), but scaling replicaCount above 1 does not buy a faster failover. Whichever replica holds the lease is the sole writer of status, DNS, and promotion commands; every other replica is idle and just waiting to take over.
• The MySQL data plane does not need the operator to serve traffic. A healthy primary and replica keep serving reads and writes with zero operator involvement. The operator is on the failure-detection and promotion path, not the request path.
• Correctness is preserved during operator downtime. The sidecar self-fencing layer stops any MySQL instance from accepting writes when it can reach neither the operator nor its peer for spec.sidecar.leaseTimeout (default 20s). See Operator-down + primary failure below.
• Availability is not preserved during operator downtime. A primary failure while the operator is down is an outage for writes until the operator comes back. This is the explicit tradeoff. If you need lower MTTR, invest in faster operator recovery (small image / fast image pulls, short liveness probe backoff, favorable scheduling or priorityClass) rather than in a multi-replica control plane.

What the operator is responsible for

For context, here is every action that only the operator performs. Nothing in this list happens during operator downtime.

• Polling each site's MySQL instance and debouncing writable / read-only / unreachable transitions (see state machine).
• Deciding whether a cross-site combination warrants a failover, an alert, or no action.
• Running the failover sequence: promote the replica, flip the -primary Service selector, update the DNSEndpoint record, taint the losing site's nodes.
• Reconciling Pods, PVCs, Services, and the two MySQL Deployments from the MysqlFailoverGroup spec.
• Reconciling backup CronJobs, creating MysqlBackup Jobs, and running retention cleanup.
• Writing status.* fields on the CR (active site, conditions, PITR coverage, divergent GTIDs, etc.).
• Answering the sidecars' GET /active-site probe, which is what the sidecar uses to decide whether to self-fence on boot.

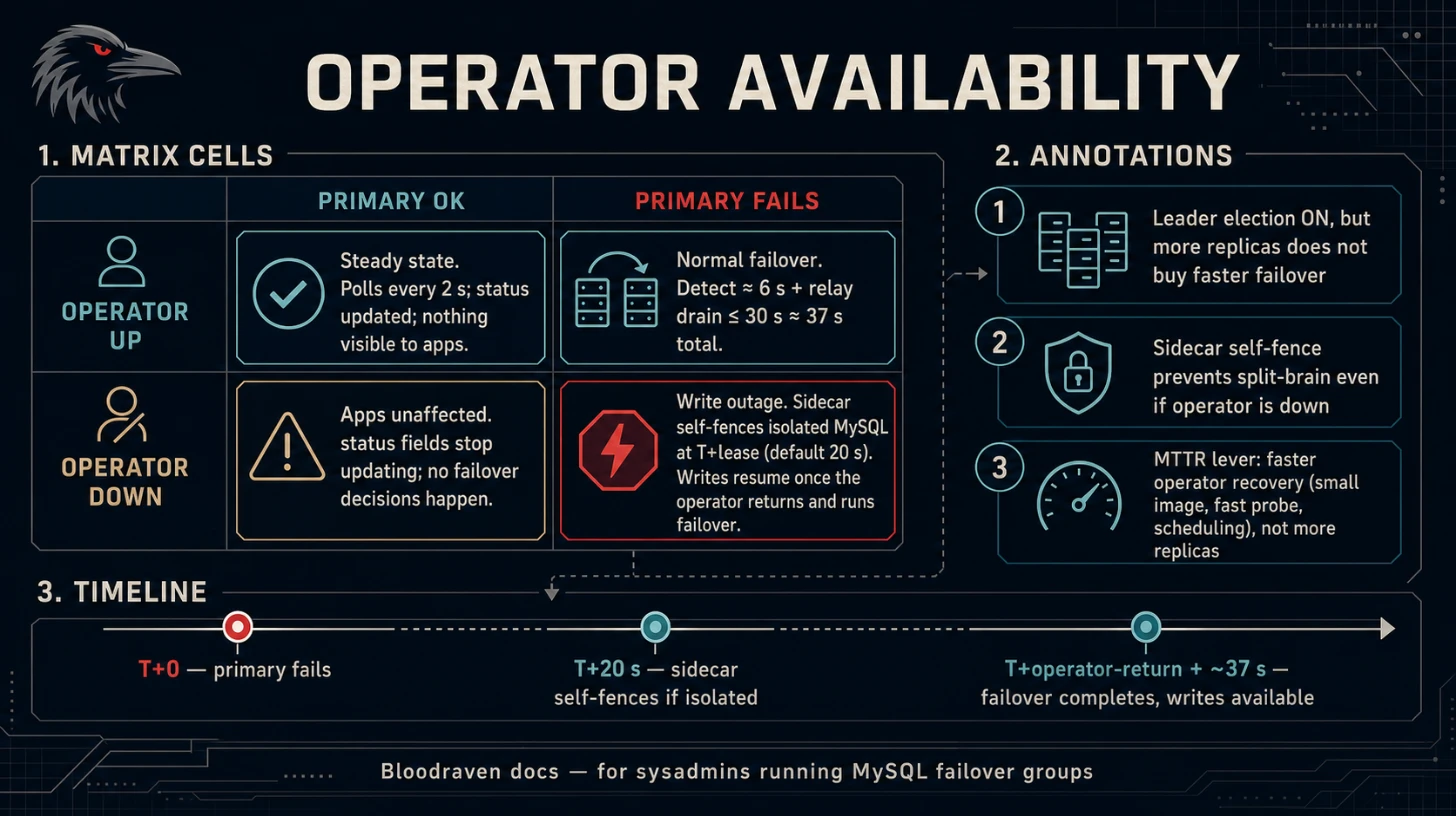

What happens when the operator is down

Healthy steady state

Nothing visible to applications. MySQL keeps serving reads and writes on whatever site is active. Replication keeps flowing. Sidecar health probes keep succeeding. The only observable signal is that the operator pod is down (liveness probe / Prometheus up{job="bloodraven"}), and status.* fields on MysqlFailoverGroup objects stop updating.

Rolling restart / image upgrade

A normal pod restart is ≈ 5–10 seconds. Within that window:

• No MySQL state changes are observed.
• Sidecars count down leaseTimeout (default 20s). The restart finishes well before that, and on the next periodic fencing check (peerCheckInterval, default 5s) the sidecar can reach the operator's /healthz endpoint again, so the self-fence timer is refreshed before it expires.
• In-flight RecloneRequested / RecloneRejected decisions are idempotent: the annotation is either still present (will be handled on the next sync) or already cleared.

No special procedure is required for operator image upgrades.

Operator-down + primary failure

This is the case the wishlist asked us to document explicitly.

Timeline. Assume the operator has been down for longer than leaseTimeout (20 s) when the active primary crashes or is partitioned.

T	Event	Observable state
0	Operator pod crashes / is being upgraded. Liveness fails.	-primary Service still points at the active primary; replica is healthy.
≤ 20 s	Sidecars on both sites notice the operator is unreachable. Each one starts its leaseTimeout timer.	Nothing user-visible. Writes still work.
tp	The primary pod goes down for any reason (node crash, OOM, partition, manual kill).	Apps connecting to -primary fail: first ECONNREFUSED once the pod is gone, then DNS name resolves but the Service has no endpoints. Reads from -replicas continue uninterrupted.
tp + 20 s	If the primary pod is still alive but isolated (network partition), its own sidecar observes that both the operator and the peer replica are unreachable for longer than leaseTimeout and self-fences the primary (SET GLOBAL super_read_only = ON). If the primary simply crashed, there is nothing to fence — the replica stays read-only by virtue of its existing read_only=1 (the replica's fencing monitor is a no-op on a read-only instance). Either way, no writable node exists.	Reads still work. Writes still fail. No split brain is possible.
…operator still down…	Nothing happens. There is no component elected or authorized to promote the replica.	Writes remain unavailable. Operator's CR status is stale (no new polls have been recorded).
tr	Operator pod is rescheduled and starts leading.	Operator begins polling both sites.
tr + failureThreshold × pollInterval ≈ 6 s	Operator declares the dead primary unreachable and the live replica read-only.	Debounced state visible in status.sites[].
tr + ≈ 6 s + relay drain (up to 30 s)	Operator promotes the replica, updates the -primary Service selector, flips the DNSEndpoint.	FailoverExecuted Event. -primary Service now routes to the new primary.
tr + ≈ 37 s	Writes resume on the new primary, from whichever app instance reconnects first.	Apps see the outage end. If replication was current before tp, no transactions are lost; if the replica was behind, transactions committed on the dead primary beyond its seconds_behind_source at the moment of failure are lost (normal async-replication RPO).

Application perspective. From the application side, an operator-down + primary-failure outage looks like this:

1. Writes start failing immediately when the primary becomes unreachable. Most MySQL clients surface this as a connection error or a read_only error if the pod comes back briefly before being fenced.
2. Reads keep succeeding throughout (the -replicas Service still has a healthy endpoint, as long as the replica stays up).
3. Writes resume once the operator finishes its first post-restart failover cycle, roughly operator-startup time + 6 s (debounce) + up to 30 s (relay drain) ≈ 10–40 s after the operator pod comes back. If the old primary is still alive but isolated, there may also be an additional stale-primary fencing window driven by leaseTimeout plus the sidecar check interval; that fencing only applies to a still-writable old primary and may already have happened before the operator restarts.

Write-path unavailability is the cost of not running a multi-replica control plane. Correctness — no split brain, no silent divergence, no applying-the-wrong-writes-to-the-wrong-site — is preserved by the sidecar fencing layer regardless of how long the operator is gone.

Operator-down + replica failure

Symmetric case, and less dramatic: writes continue on the active primary; reads start failing if the replica was serving them via -replicas. When the operator returns, the replica is detected as unreachable, no failover is triggered (nothing to promote to), and the Service selector narrows to exclude the down replica until it recovers.

Operator-down + partial partition (stale-primary scenario)

This is the subtle case that WISHLIST #4 called out. A primary has already been failed over — the operator promoted the peer after the original primary lost connectivity — and the original primary now comes back into a state where it can reach its peer sidecar but still cannot reach the operator.

Under a naive "fence only when operator AND every peer are silent" rule, this stale primary never fences: its peer is reachable, so the lease counter is refreshed every tick. Two MySQL instances could both report read_only=OFF until the operator's link comes back and it force-fences the wrong one.

Bloodraven closes this by having the sidecar poll authoritative topology on every fencing tick, not only at boot:

1. The sidecar GETs the operator's /active-site?namespace=<ns>&group=<g> and caches the reply (activeSite, observedAt). The cache is also seeded by the boot-time safety net.
2. It GETs each peer's /peer/active-site. If a peer returns a view with a strictly newer observedAt, the sidecar adopts it — this is how a sidecar that has lost its own operator link can still learn that a failover has happened.
3. Before running the lease-expiry rule, the sidecar compares the cached authoritative activeSite against its own site. If they differ and MySQL is still writable, it fences immediately: SET GLOBAL super_read_only=ON and kill open app connections.

The sequence for the scenario above:

The stale primary fences within one fencing tick (peerCheckInterval, default 5 s) of coming back — it does not wait for leaseTimeout, and it does not depend on the operator being reachable. The only prerequisite is that at least one peer has ever successfully observed the authoritative /active-site. The boot-time safety net guarantees this for any peer that has been up since the last failover.

Rolling upgrade note: a peer running an older sidecar that does not yet implement /peer/active-site returns 404; the adopting sidecar silently falls back to the operator-only path. No lease behavior changes in the mixed-version window.

Operator-down + both-site outage

Rare, but by construction, nothing can recover this automatically — neither the sidecars (both peers unreachable and self-fenced) nor the operator (down). Human intervention is required. See Total loss recovery.

Recommended mitigations

These are things you can do to minimize the blast radius of operator downtime without adopting a multi-replica control plane:

• Keep the operator pod up. Use a tight liveness probe, a readiness probe that only reports ready once the manager is healthy, and immutable image tags (or an explicit pull policy) to avoid rollout-time pull failures. Rely on Kubernetes to restart or reschedule the pod promptly; a healthy node restart is ≈ 5 s, well inside leaseTimeout.
• Size the PodDisruptionBudget so the operator isn't evicted during routine node drains. The shipped Helm chart does not set a PDB on the operator; add one if your cluster does aggressive scheduling.
• Monitor up{job="bloodraven"} and kube_pod_status_phase for the operator namespace. Page on operator down, not just on MySQL alerts — a quiet operator during a MySQL failure is the worst of both worlds.
• Rehearse the outage. Use the playground's scenarios 2 (operator kill + restart while healthy) and 5 (operator kill mid-failover) to confirm the timing in your own environment.
• Never run the operator image from a floating tag in production. A failed image pull during a routine Deployment rollout turns into the case documented above.

FAQ

Can I run two operator replicas? You can, and leader election will keep exactly one active. This protects against a split-brain scenario during a rolling Deployment update (the old pod is stopped before the new pod acquires the lease, so only one side writes status at a time). It does not meaningfully reduce failover MTTR — by the time the new leader is elected and starts polling, a single-replica Deployment would have restarted too.

Does operator downtime cause data loss? No. Committed writes stay on whichever site accepted them. The sidecar self-fence prevents any post-primary-crash writes from being accepted on a partitioned-away primary, so you never have two versions of "the latest state" to reconcile. Async replication's normal RPO applies to the crashed-primary case — see Durability and RPO for the full contract, or Old primary recovery for the operator's post-failover reconciliation.

Does operator downtime cause split brain? No, by design. Two rules cooperate. (1) Sidecars poll the operator's /active-site every tick and also read each peer's /peer/active-site; if the authoritative active site disagrees with this site and MySQL is still writable, the sidecar fences immediately. (2) As a backstop, any MySQL instance that can reach neither its peer nor the operator beyond leaseTimeout self-fences. Rule (1) is what prevents a returning stale primary from continuing to accept writes even when its peer is reachable — see Operator-down + partial partition.

Why not scale the operator horizontally? Because the failure-detection loop is the bottleneck, not the operator process. Polling happens every pollInterval (default 2 s) with failureThreshold debounce (default 3). Adding a second replica cannot shorten that loop — both replicas would see the same polls — and leader election adds its own election latency when the lease expires. The current design keeps the writable path on one goroutine with observable state, which is far easier to reason about than a coordinator-of-coordinators.
