Security model

This page documents Bloodraven's security posture: the trust boundaries between its components, the authorizations each component holds, and the blast radius when a specific secret or identity is compromised. It complements Production hardening, which lists the settings to turn on; this page explains why they matter and what remains exposed when they are all correct.

Bloodraven is an in-cluster control plane for a tenant MySQL service. It is not a zero-trust system on its own. It relies on the hosting Kubernetes cluster for authentication, namespace isolation, and network policy. The guarantees below all assume a competent cluster operator is running it.

Security quick wins

• Use spec.credentials with five distinct role Secrets.
• Enable spec.tls and require TLS in MySQL clients.
• Keep auxiliary.service.enabled=false unless a dashboard or integration needs it.
• Add NetworkPolicy for operator, sidecar, MySQL, Prometheus, app, and backup paths.
• Pin and mirror operator, sidecar, MySQL, and backup images.
• If Dragonfly is enabled, protect its password Secret, active Service, and admin port with the same care as the MySQL data plane.
• Link Secret rotation to Credentials And TLS.

Threat-model assumptions

Assumption	Consequence
Kubernetes API authn/authz is trusted	RBAC boundaries are meaningful.
CNI enforces NetworkPolicy correctly	Unauthenticated sidecar and auxiliary endpoints can be isolated.
Secret storage is protected	MySQL, Dragonfly, TLS, S3, and encryption secrets remain confidential.
Node administrators are trusted	A node admin can read mounted Secrets and MySQL data on that node.
Application workloads are less trusted than the operator	Apps should only receive app or read-only MySQL credentials.

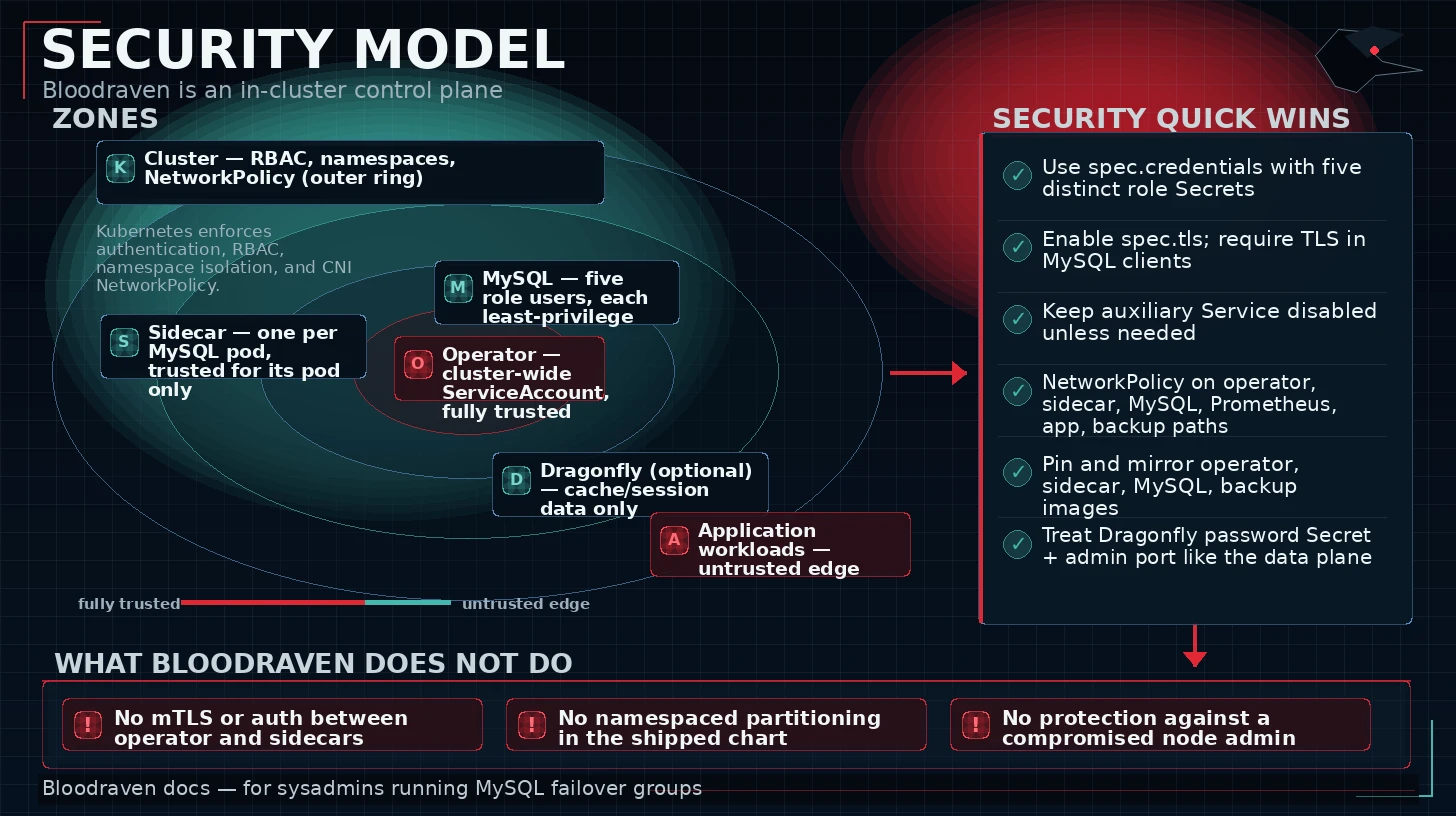

Trust model at a glance

Four identities participate in the required MySQL data path. Managed Dragonfly adds an optional cache/session data path when enabled. Everything else in the cluster is considered untrusted.

Identity	What it is	Trust level
Operator	Single-replica Deployment running bloodraven, bound to a cluster-wide ServiceAccount. Owns the reconcile loop and DNS writes.	Fully trusted — it is the control plane.
Sidecar	Per-MySQL-pod container running bloodraven-sidecar. Serves read-only status HTTP, manages MySQL startup, writes binlog manifests, and self-fences its MySQL.	Trusted for the single pod it runs in.
MySQL	mysqld itself, with the per-role users Bloodraven creates (operator, app, readonly, monitor, backup).	Trusted for query execution; each MySQL user is trusted only for its role's grants.
Dragonfly	Optional per-site Dragonfly pods created when spec.dragonfly.enabled=true. The operator configures replication, role/traffic labels, and promotion.	Trusted for cache/session data only. Do not store durable application state here.
Application	Workloads that connect to the primary/replica Services using appSecret / readOnlySecret.	Untrusted by the operator — apps are tenants.

All intra-cluster traffic between these identities flows over the pod network. Bloodraven does not authenticate HTTP calls between the operator and the sidecars, and it does not mTLS-protect the sidecar HTTP endpoint. Isolation is the hosting cluster's job (NetworkPolicy, namespace boundaries, CNI-level encryption if you require it).

Authorization — who can do what

Operator ServiceAccount

The operator runs with a cluster-scoped ClusterRole (config/rbac/role.yaml, mirrored in charts/bloodraven/templates/clusterrole.yaml). It holds the minimum set of verbs to reconcile MysqlFailoverGroup and MysqlBackup resources across any namespace. Notably:

• Full CRUD on Secrets, ConfigMaps, Services, PersistentVolumeClaims, Jobs, CronJobs, Deployments, PodDisruptionBudgets — cluster-wide. The operator reads credential Secrets, renders MySQL config into ConfigMaps, and creates PVCs, Services, Pods, and Jobs per site.
• Full CRUD on dnsendpoints.externaldns.k8s.io — the failover path writes DNSEndpoint CRs that external-dns then pushes to the DNS provider.
• get/list/watch/patch on pods and nodes, plus get on pods/log — used for the tainter, the backup-sentinel log tail, and placement contract enforcement.
• Full CRUD on leases.coordination.k8s.io — leader election.

There is no namespaced partitioning. A single operator install reconciles groups in every namespace. If you need tenant isolation (one operator per tenant), deploy one operator per namespace scope and use a Role instead — the code supports this but the shipped chart does not.

MySQL user roles

When spec.credentials is used, the operator creates five MySQL users with the following effective grants (see CRD Reference → CredentialsSpec):

Role	Effective authority
operator	ALL PRIVILEGES ON *.* WITH GRANT OPTION — full admin. Used by the operator and sidecar only.
app	ALL PRIVILEGES ON *.* without GRANT OPTION or SUPER — read/write DML + DDL for tenant workloads.
readonly	SELECT, SHOW VIEW, SHOW DATABASES, PROCESS — read replicas.
monitor	PROCESS, REPLICATION CLIENT + SELECT on performance_schema.* — mysqld_exporter and similar scrapers.
backup	SELECT, LOCK TABLES, SHOW VIEW, EVENT, TRIGGER, RELOAD, BACKUP_ADMIN, REPLICATION CLIENT — MySQL Shell dump jobs.

The legacy spec.secretName DSN mode collapses all of the above into a single user whose credentials the DSN carries. Do not use it in production — it defeats the entire per-role isolation story.

Destructive annotations on the CR

patch on mysqlfailovergroups is the narrow privilege that controls every operator-initiated destructive action. The annotations the operator acts on are:

• bloodraven.shipstream.io/reclone-site=<site>:<gtid-prefix> — Triggers CLONE INSTANCE on the named site, overwriting its data directory from the current primary. The GTID-prefix confirmation (≥ 8 chars, must match the current status.sites[<site>].divergentGtid) prevents typos from wiping the wrong site. See Failover → Reclone flow.
• bloodraven.shipstream.io/planned-failover=<site> — Drains writes, honours the anti-flap cooldown, waits for the target to catch up, and promotes the named site. When Dragonfly is enabled, this also drives the Dragonfly sync and REPLTAKEOVER phases.
• bloodraven.shipstream.io/dragonfly-snapshot-upgrade=<image> — Runs the Dragonfly snapshot-restore upgrade workflow when spec.dragonfly.snapshot is configured.

An attacker with patch mysqlfailovergroups in the target namespace can therefore cause a data wipe of one site (bounded by the GTID confirmation interlock), an unscheduled failover, or a planned Dragonfly cache/session outage during snapshot-restore upgrade. RBAC on the CRD is the only gate — scope MysqlFailoverGroup edit rights as tightly as you would scope kubectl delete pvc.

Network surface

Listener	Port	Authenticated?	Purpose
Operator metrics	:8080	No	Prometheus scrape (/metrics).
Operator health probes	:8081	No	Kubernetes liveness/readiness.
Operator auxiliary HTTP	:8082	No	/status, /active-site, /pitr-cutoff, /ws/status (WebSocket). Consumed by the dashboard and by sidecars that check which site is active.
Sidecar HTTP	:8080	No	/health, /status, /peer/ping, /archiver/status. Consumed by the operator and the peer sidecar.
MySQL	:3306	Yes (password; TLS if spec.tls set)	Data plane.
Dragonfly client	:6379 by default	Password when spec.dragonfly.auth is set	Optional Redis-compatible cache/session data plane.
Dragonfly admin	:9999 by default	Password when spec.dragonfly.auth is set	Optional operator control surface for replication, promotion, and snapshot commands.

None of the HTTP surfaces above authenticate callers. They expose read-only status and GTID coordinates; none accept state-changing requests. The design assumes the pod network is protected by NetworkPolicy and that the operator + sidecars run in a namespace that does not accept untrusted ingress. In particular:

• Do not expose :8082 outside the cluster. The /active-site and /status endpoints do not leak credentials but do leak topology, site names, zone labels, and GTID coordinates — useful reconnaissance for an attacker already inside the cluster.
• The WebSocket push stream (/ws/status) is likewise unauthenticated. Anyone that can reach port 8082 can read real-time failover events.
• If you require scrape auth, front the metrics endpoint with a sidecar (e.g. kube-rbac-proxy). The chart does not ship one.

TLS and data-in-flight

When spec.tls.secretName references a Secret with ca.crt, tls.crt, and tls.key, the operator mounts it into every MySQL pod and renders config that sets ssl-ca/ssl-cert/ssl-key and require-secure-transport=ON. Without TLS set, MySQL accepts plaintext connections from anything on the pod network.

• Replication between sites uses the same MySQL port and the same server certificate — cross-site replication is TLS-protected only when spec.tls is set. Mirror a single issuer across sites, or ensure both sites' certs chain to a CA each other trusts.
• The sidecar, operator, backup Jobs, and MySQL Shell dump workers all trust the CA in ca.crt. When you rotate the CA, rotate the mounted Secret; the operator detects the hash change and rolls pods.
• Cert-manager integration is not automatic — Bloodraven expects the Secret to exist. Use a cert-manager Certificate resource to populate it.

Dragonfly traffic is not covered by spec.tls; configure NetworkPolicy and, where required, Dragonfly-native TLS or a service mesh outside Bloodraven's managed flags. Do not expose the Dragonfly admin port to applications.

Secrets at rest and in memory

• Nothing is written to disk that wasn't already on disk. The sidecar receives its DSN via MYSQL_DSN env var (or reconstructs one from MYSQL_USER/MYSQL_PASSWORD) and keeps it in memory. It does not write credentials to a file.
• Logs never include passwords. DSNs are built for in-process use and are never logged; SQL statement errors are truncated before logging. Operator events and condition messages are safe to ship to a log aggregator.
• Secret content is copied into env and files as MySQL requires. The MySQL pod's environment holds MYSQL_ROOT_PASSWORD and the per-role passwords during first boot; after user creation these are no longer required and could be unset, but the operator keeps them in the pod spec for simplicity. Anything that can kubectl exec or kubectl describe pod can see them.
• Dragonfly auth is optional but recommended for shared namespaces. When spec.dragonfly.auth is set, the operator projects the password Secret into Dragonfly pods as an environment variable and uses it for its own Redis-protocol connections.

Compromise scenarios

The operator ServiceAccount token leaks

This is the worst-case credential compromise. With operator-level cluster access, an attacker can:

1. Read every namespace's Secrets. Including MySQL credential Secrets for every MysqlFailoverGroup the operator manages. Treat this as equivalent to leaking all per-tenant MySQL credentials and all TLS private keys referenced by spec.tls.
2. Create or patch arbitrary Deployment, Pod, Job, CronJob, Service, and PVC objects cluster-wide. Because the operator has full CRUD on these, the attacker has a general-purpose tenancy breakout through pod spec injection.
3. Write DNSEndpoint CRs that external-dns will push to the public DNS zone, enabling a DNS-hijack attack against any name external-dns manages (not just MySQL names).
4. Exfiltrate PVC contents by scheduling a pod that mounts the target PVC — the ServiceAccount can create pods and PVC mounts.
5. Create or patch Dragonfly StatefulSets and Services when the feature is enabled, including changing cache/session routing labels.

Mitigations. Pin the chart's serviceAccountName, bind it to a namespace-scoped Role where possible, run the operator in its own namespace, and rely on the audit log to detect token reuse from unexpected source IPs. Rotate the token (delete the ServiceAccount's token Secret) on any suspected compromise — Kubernetes issues a new projected token to the pod automatically.

This is the single largest blast radius in the product. A multi-operator, namespace-scoped deployment model is on the wishlist but not implemented today.

The MySQL operator / root password leaks

Inside the DB, operator and root are equivalent — both carry ALL PRIVILEGES ... WITH GRANT OPTION. An attacker with either can:

1. Read, modify, or drop any schema. Including running SELECT ... INTO OUTFILE on any path MySQL can reach (bounded by secure_file_priv, which Bloodraven sets to the data directory).
2. Create new MySQL users and grant them arbitrary privileges, surviving a password rotation of the known users.
3. Run STOP REPLICA / RESET REPLICA ALL / CHANGE REPLICATION SOURCE TO ... — directly breaking replication or repointing a replica at an attacker-controlled primary.
4. Trigger SHUTDOWN (unless SUPER is gated), rebooting the MySQL instance.

The blast radius is per-failover-group, not cluster-wide. The operator will detect the resulting replication breakage and attempt recovery or raise Degraded=True, but it cannot distinguish malicious writes from legitimate ones — divergent GTIDs are the only signal that reaches the status.sites[].divergentGtid field.

Mitigations. Store credential Secrets with a rotating provider (ESO, sealed-secrets, Vault). Set alerts on bloodraven_divergent_transactions > 0. Keep the operator's Secret in the same namespace as the failover group so a namespace-compromise does not cascade.

The MySQL app password leaks

Bounded by the app grants: read/write across every schema, but no SUPER, no GRANT OPTION, no REPLICATION privileges. The attacker cannot:

• Create new MySQL users or escalate within MySQL.
• Break replication (lacks REPLICATION CLIENT / REPLICATION SLAVE).
• Run KILL on other sessions (lacks PROCESS unless you deviate from the default).
• Drop the MySQL server itself.

The attacker can run arbitrary SQL against the tenant data. This is the same blast radius as an application SQL-injection — assume any compromise of app yields full data read/write for the application's schemas.

Mitigations. Rotate appSecret on detection. The operator propagates password changes via ALTER USER on the next reconcile. Consumers that cache connection strings need to reconnect.

A sidecar pod is compromised

A sidecar pod shares the pod network namespace with its mysqld. An attacker with code-execution in the sidecar can:

1. Connect to mysqld on 127.0.0.1:3306 using the operator credentials the sidecar holds. This is the same authority as "operator password leaks", but scoped to the one MySQL instance.
2. Self-fence the MySQL (write read-only=ON, kill its own pod) — the sidecar already does this legitimately, but an attacker can use it for denial-of-service. The peer sidecar will eventually promote, so the net effect is an unscheduled failover.
3. Write the binlog archive manifest for that site — corrupting PITR coverage for that site only. Objects already uploaded to the backup bucket are not deleted by the sidecar; recovery is possible from the bucket manifest + objects, but status.pitr.archiveCoverageTo will mislead operators in the meantime.
4. Read the MySQL data directory — the sidecar's mount point on /var/lib/mysql is shared with mysqld.

The blast radius is one MySQL site of one failover group. The attacker does not gain operator-level Kubernetes privileges — the sidecar runs with a minimal ServiceAccount — and does not reach the peer site directly (the peer only trusts its own sidecar and the operator). The worst observable consequence is a forced failover plus data exfiltration from the one site.

Mitigations. Use a distroless sidecar image, keep its process footprint small, and audit the sidecar image in the same supply-chain pipeline as mysqld. Alert on bloodraven_failovers_total spikes that coincide with sidecar restarts.

A backup bucket credential leaks

Bounded by the bucket IAM policy — not by Bloodraven. Bloodraven passes the credentials (from spec.backup.profiles[].storage.secretRef) to mysqlsh, mysqlbinlog, and the sidecar archiver as env vars. With the credential, an attacker can:

• Delete or overwrite backup objects (full dumps and binlogs), destroying the PITR chain.
• Read every dump — they contain the full database content.

Mitigations. Scope bucket IAM to the specific profile's prefix. Enable object-lock / versioning / MFA-delete on the bucket. Rotate bucket credentials independently of MySQL credentials.

The DNS zone trust is compromised

Bloodraven writes DNSEndpoint CRs; external-dns translates them into DNS records. If the DNS provider or external-dns itself is compromised, an attacker can repoint MySQL traffic to an attacker-controlled endpoint. Bloodraven cannot prevent this. The only mitigation is defense in depth at the DNS layer — zone- signing, IAM scoping of external-dns, and short TTLs that limit the window during which a malicious repoint holds.

What Bloodraven does not defend against

Explicit non-goals, so the list above is complete:

• Container escape from mysqld — Out of scope; treat mysqld as you would any other privileged workload in your cluster.
• Kernel-level exfiltration of data in MySQL memory — out of scope; use confidential-computing primitives at the node level if required.
• Malicious application SQL — the operator cannot distinguish a legitimate write from a malicious one. Application-level access control is the app's responsibility.
• Kubernetes API server compromise — nothing below the API server can be trusted if the API server is compromised.
• Supply-chain attacks on the operator or sidecar images — pin and mirror per Production hardening.
• DoS of the control plane — an attacker with patch on a CR can trigger reconciles at whatever rate the API server allows. The operator is rate-limited by controller-runtime's workqueue, but a motivated abuser can still produce noise.

Hardening summary

If you only read one section, read this. The minimum for a production deployment:

1. Use spec.credentials (per-role) — never spec.secretName (legacy DSN).
2. Set spec.tls and require it in the MySQL clients.
3. Scope patch on MysqlFailoverGroup tightly — it is the reclone and planned-failover vector.
4. Keep the operator in its own namespace and do not grant its ServiceAccount to anyone else.
5. Apply a NetworkPolicy that permits only the operator to reach sidecar :8080 and the dashboard to reach operator :8082.
6. Store credential Secrets with a rotating provider and rotate on a schedule.
7. Lock down the backup bucket IAM to the prefix the profile uses, and enable versioning / object-lock.
8. Subscribe to divergent-GTID alerts (bloodraven_divergent_transactions > 0) — that is your "someone wrote to the wrong primary" tripwire.

For the full checklist see Production hardening.
